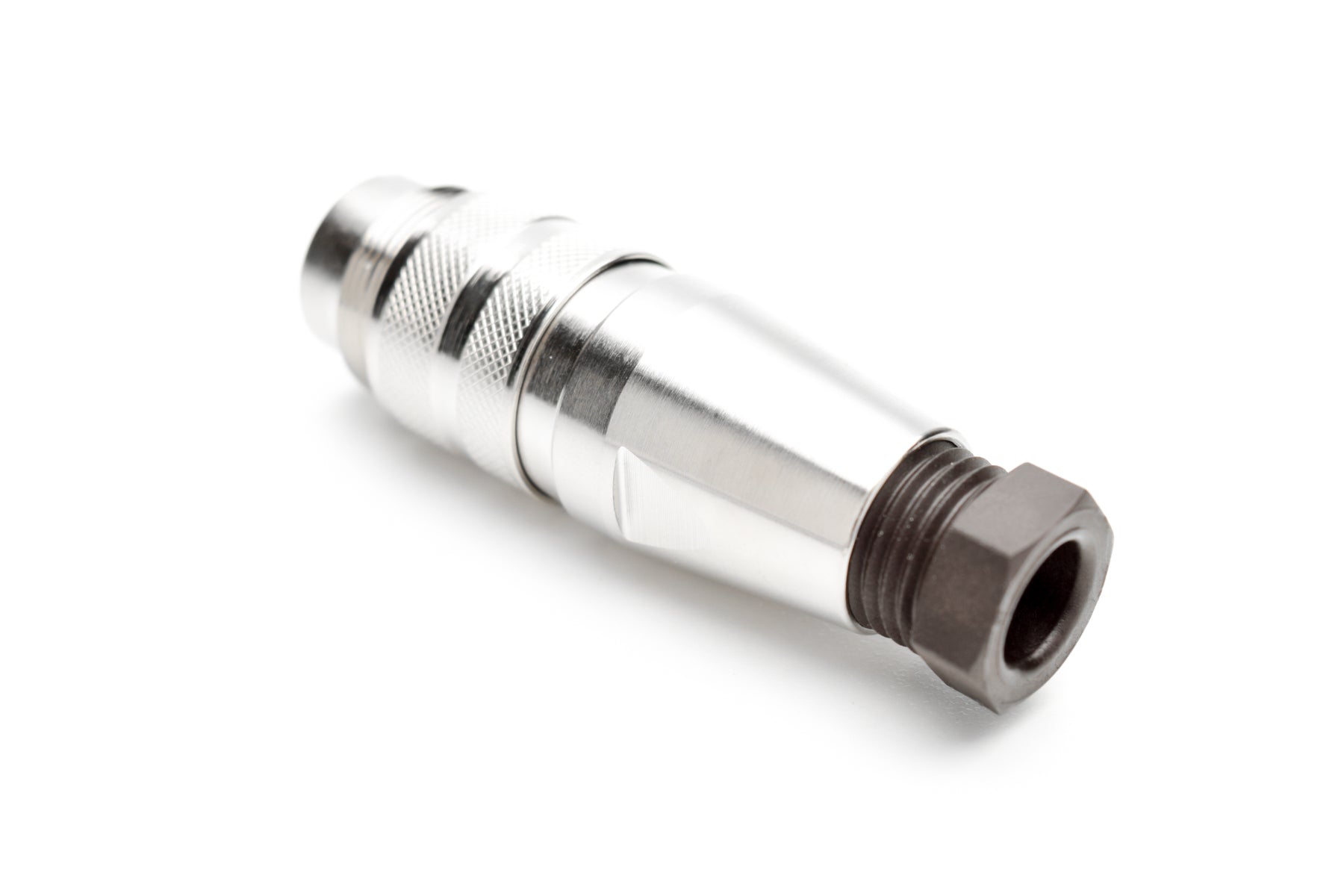

C091 31H008 100 2 Male Connectors with internal strain relief and metal locking ring. Complete EMI shielding in the fully mated and locked position (EMI security). Screw locking according to IEC 61076-2-106. Contacts included.
C091 31H008 100 2 Male Connectors with internal strain relief and metal locking ring. Complete EMI shielding in the fully mated and locked position (EMI security). Screw locking according to IEC 61076-2-106. Contacts included.
IMAGE MAY DIFFER
SKU:C09131H0081002
Couldn't load pickup availability
Downloads
DatasheetSpecifications
Contacts: 8
Current Rating: 7A
IP Rating: IP67/ 65 (in mated condition)
Contact Plating: Silver
Termination: Solder
Insulation Resistance: ≥ 10(10) Ω
Operating Temperature: -40°C to +100°C
Housing Material: Die cast, nickel plated
Mating Part: C09131D0081002,C09131D0081012,C09131F0081002,C09131F0081012,C09131G0081002,C09131N0081002,C09131T0081002,C09151G0081002,C09161G0081102,C09161G0081202,C09161G0081302,C09161N0081202
Shape: circular
Male Connectors with internal strain relief and metal locking ring. Complete EMI shielding in the fully mated and locked position (EMI security). Screw locking according to IEC 61076-2-106. Contacts included.
