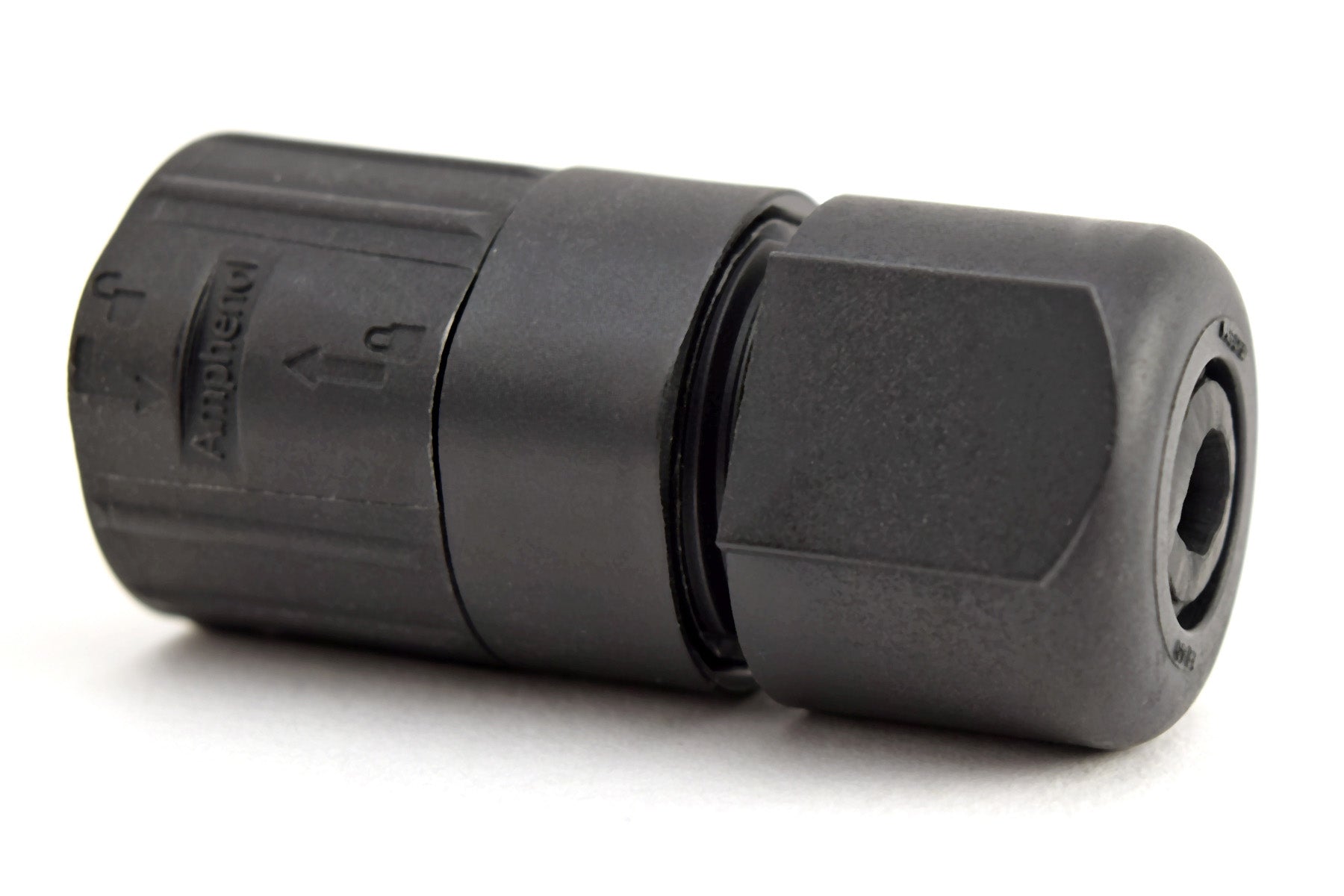

C091 31H012 200 5 U Male Connectors, Quicklock, Size M16, 12 Contacts, Gold Contact Plating, Cable Diameter 4-8.5mm
C091 31H012 200 5 U Male Connectors, Quicklock, Size M16, 12 Contacts, Gold Contact Plating, Cable Diameter 4-8.5mm
IMAGE MAY DIFFER
SKU:C09131H0122005U
Couldn't load pickup availability
Downloads
DatasheetSpecifications
Contacts: 12
Style: Pin
Current Rating: 3A
Colour: Black
IP Rating: IP68
Contact Plating: Gold
Termination: Solder
Insulation Resistance: >10^10 Ohm²
Operating Temperature: -40°C to +100°C
Housing Material: Thermoplastic
Seal Material: Chloroprene, silicone
Mating Part: C09131G0121005U,C09131G0121095U,C09131G0122005U,C09131G0122095U
Shape: Circular
Male Connectors, Quicklock, Size M16, 12 Contacts, Gold Contact Plating, Cable Diameter 4-8.5mm
