C091 31H012 202 4 Male Connectors with internal strain relief and metal locking ring. Complete EMI shielding in the fully mated and locked position (EMI security). Screw locking according to IEC 61076-2-106.
C091 31H012 202 4 Male Connectors with internal strain relief and metal locking ring. Complete EMI shielding in the fully mated and locked position (EMI security). Screw locking according to IEC 61076-2-106.
IMAGE MAY DIFFER
SKU:C09131H0122024
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
DatasheetSpecifications

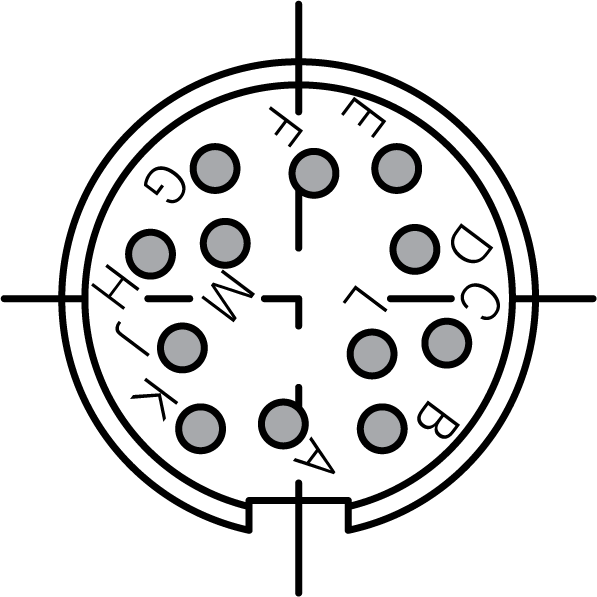

Contacts: 12
Current Rating: 3A
IP Rating: IP68 (in mated condition)
Contact Plating: Gold
Termination: Solder
Insulation Resistance: ≥ 10(10) Ω
Operating Temperature: -40°C to +100°C
Housing Material: Zinc die cast, nickel plated
Seal Material: Chloroprene
Mating Part: C09131D0122004,C09131D0122014,C09131D0122024,C09131G0122002,C09131N0122002,C09131T0122002,C09161G0122102
Shape: circular
Male Connectors with internal strain relief and metal locking ring. Complete EMI shielding in the fully mated and locked position (EMI security). Screw locking according to IEC 61076-2-106.
