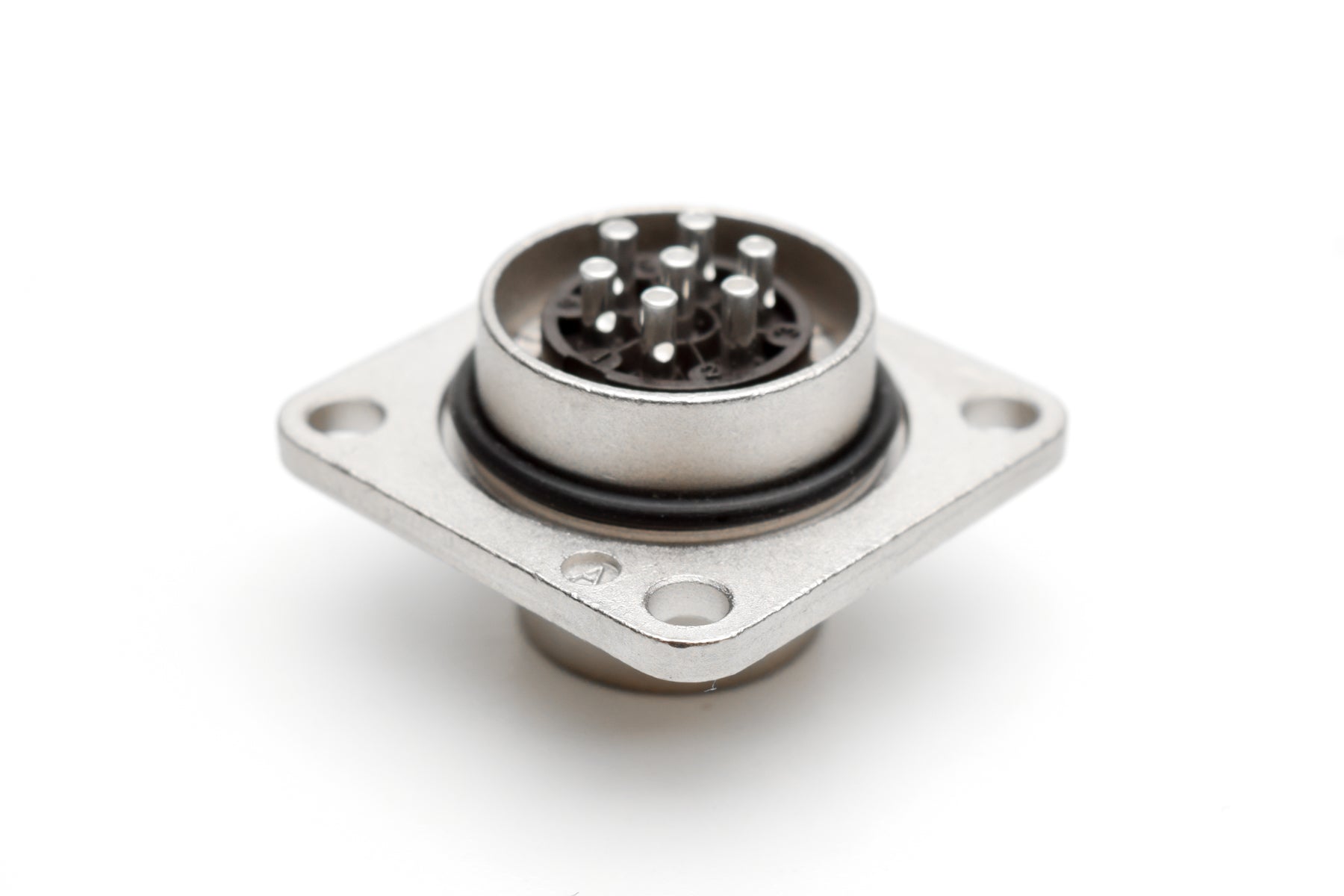

C091 31S007 100 2 Flange mount male metal Connectors with O-ring seal and ring nut (hex nut available upon request). Complete EMI shielding in the fully mated and locked position (EMI security). Contacts included.
C091 31S007 100 2 Flange mount male metal Connectors with O-ring seal and ring nut (hex nut available upon request). Complete EMI shielding in the fully mated and locked position (EMI security). Contacts included.
IMAGE MAY DIFFER
SKU:C09131S0071002
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
DatasheetSpecifications
Contacts: 7
Current Rating: 7A
IP Rating: IP67/ 65 (in mated condition)
Contact Plating: Silver
Termination: Solder
Insulation Resistance: ≥ 10(10) Ω
Operating Temperature: -40°C to +100°C
Housing Material: Die cast, nickel plated
Mating Part: C09131D0071002,C09131D0071004,C09131D0071012,C09131D0071014,C09131D0071024,C09131D1071002,C09131D1071012,C09131F0071002,C09131F0071012,C09131F1071002,C09131F1071012
Shape: circular
Flange mount male metal Connectors with O-ring seal and ring nut (hex nut available upon request). Complete EMI shielding in the fully mated and locked position (EMI security). Contacts included.
