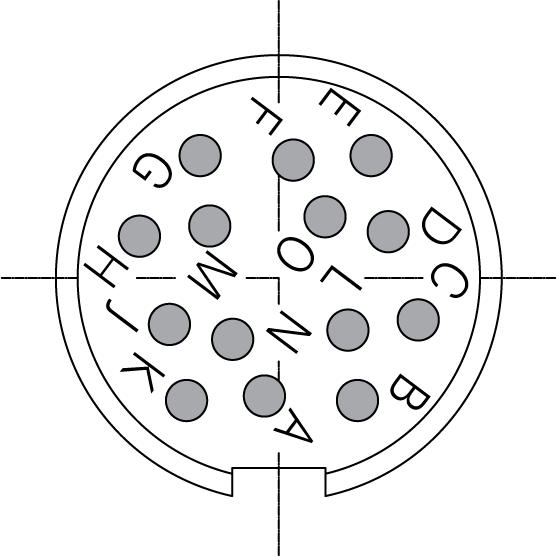

C091 31S014 200 2 Flange mount male metal Connectors with O-ring seal and ring nut (hex nut available upon request). Complete EMI shielding in the fully mated and locked position (EMI security). Contacts included
C091 31S014 200 2 Flange mount male metal Connectors with O-ring seal and ring nut (hex nut available upon request). Complete EMI shielding in the fully mated and locked position (EMI security). Contacts included
IMAGE MAY DIFFER
SKU:C09131S0142002
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
DatasheetSpecifications
Contacts: 14
Current Rating: 3A
IP Rating: IP67/ 65 (in mated condition)
Contact Plating: Gold
Termination: Solder
Insulation Resistance: ≥ 10(10) Ω
Operating Temperature: -40°C to +100°C
Housing Material: Die cast, nickel plated
Mating Part: C09131D0142002,C09131D0142004,C09131D0142012,C09131D0142014,C09131D0142024
Shape: circular
Flange mount male metal Connectors with O-ring seal and ring nut (hex nut available upon request). Complete EMI shielding in the fully mated and locked position (EMI security). Contacts included
