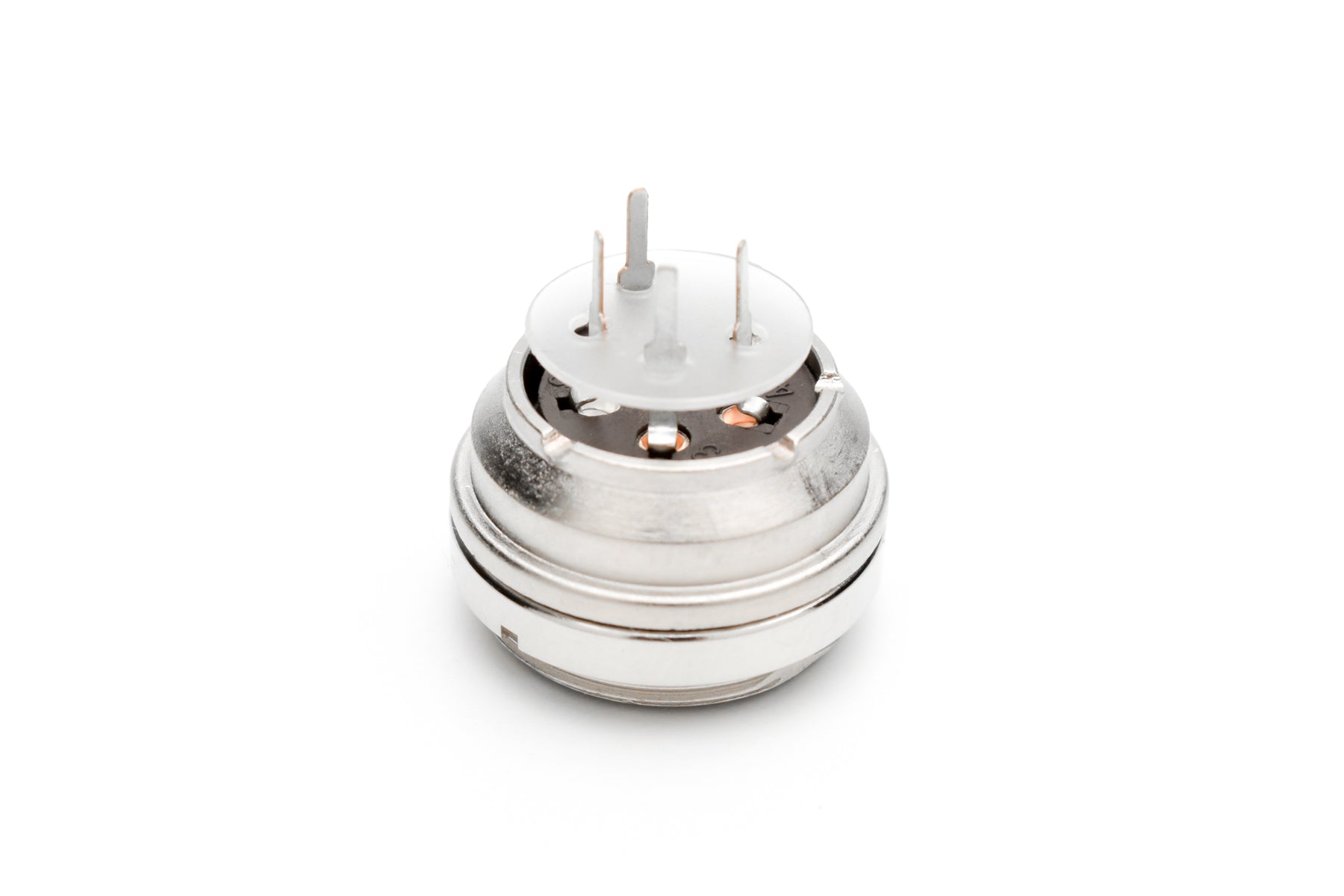

C091 61G004 120 2 Rear mounting female metal Connectors with O-ring seal and ring nut mount (hex nut available upon request). Complete EMI shielding in the fully mated and locked position (EMI security). Tin plated solder area. Contacts included.
C091 61G004 120 2 Rear mounting female metal Connectors with O-ring seal and ring nut mount (hex nut available upon request). Complete EMI shielding in the fully mated and locked position (EMI security). Tin plated solder area. Contacts included.
IMAGE MAY DIFFER
SKU:C09161G0041202
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
DatasheetSpecifications
Contacts: 4
Current Rating: 10A
IP Rating: IP67/ 65 (in mated condition)
Contact Plating: Silver
Termination: Solder
Insulation Resistance: ≥ 10(10) Ω
Operating Temperature: -40°C to +100°C
Housing Material: Die cast, nickel plated
Mating Part: C09131H0041002,C09131H0041004,C09131H0041012,C09131H0041014,C09131H0041024,C09131K0041002
Shape: circular
Rear mounting female metal Connectors with O-ring seal and ring nut mount (hex nut available upon request). Complete EMI shielding in the fully mated and locked position (EMI security). Tin plated solder area. Contacts included.
