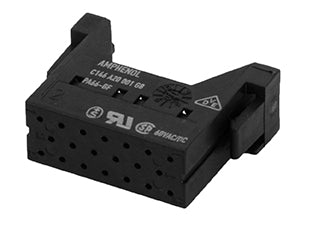

C146 A20 001 G8 Pin module for stamped 1.0mm contacts. heavy|mate® M series connectors may be engaged or disengaged when live but without electrical load. If connector is mated or unmated under load, the load shall be reduced to 10% of rated current.h
C146 A20 001 G8 Pin module for stamped 1.0mm contacts. heavy|mate® M series connectors may be engaged or disengaged when live but without electrical load. If connector is mated or unmated under load, the load shall be reduced to 10% of rated current.h
IMAGE MAY DIFFER
SKU:C146A20001G8
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
Stock Level
0 DatasheetSpecifications
Contact Quantity: 20
Contact Material: CuZn (brass)
AWG: 0.09 - 0.5mm²
Colour: Black
Contact Plating: Gold
Termination: Crimp
Insulation Resistance: ≥ 10(10) Ω
Operating Temperature: -40°C to +125°C
Mating Cycle Durability: ≥ 500 mating cycles
Shape: rectangular
Pin module for stamped 1.0mm contacts. heavy|mate® M series connectors may be engaged or disengaged when live but without electrical load. If connector is mated or unmated under load, the load shall be reduced to 10% of rated current.h
