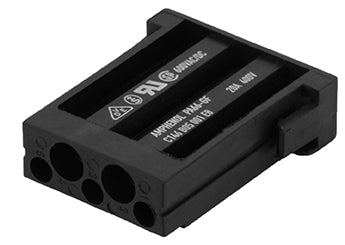

C146 B05 001 E8 Socket module for turned two.5mm contacts. heavy|mate® M series connectors may be engaged or disengaged when live but without electrical load. If connector is mated or unmated under load, the load shall be reduced to 10% of rated current.
C146 B05 001 E8 Socket module for turned two.5mm contacts. heavy|mate® M series connectors may be engaged or disengaged when live but without electrical load. If connector is mated or unmated under load, the load shall be reduced to 10% of rated current.
IMAGE MAY DIFFER
SKU:C146B05001E8
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
DatasheetSpecifications
Contact Quantity: 5
Contact Material: CuZn (brass)
AWG: 0.5 - 4.0mm²
Colour: Black
Type: Socket
Contact Plating: Silver
Termination: Crimp
Insulation Resistance: ≥ 10(10) Ω
Operating Temperature: -40°C to +125°C
Mating Cycle Durability: ≥ 500 mating cycles
Shape: rectangular
Socket module for turned two.5mm contacts. heavy|mate® M series connectors may be engaged or disengaged when live but without electrical load. If connector is mated or unmated under load, the load shall be reduced to 10% of rated current.
