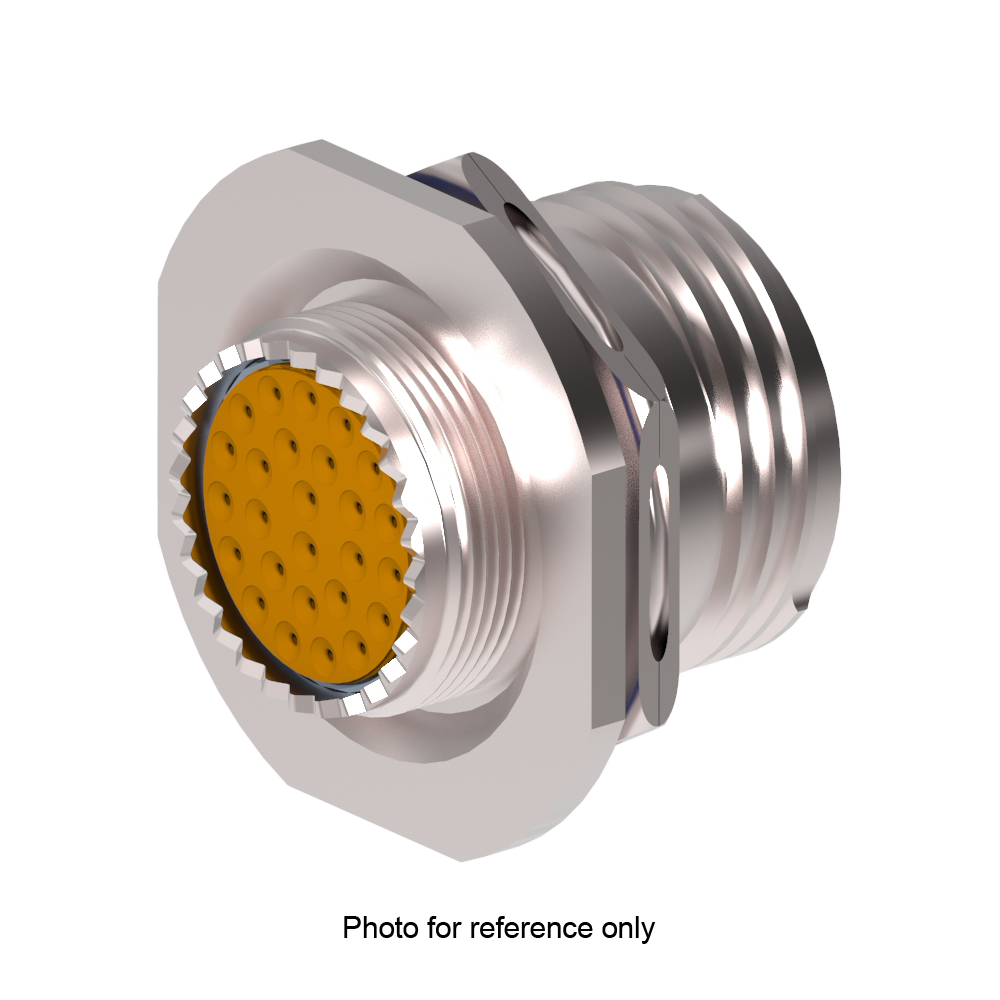

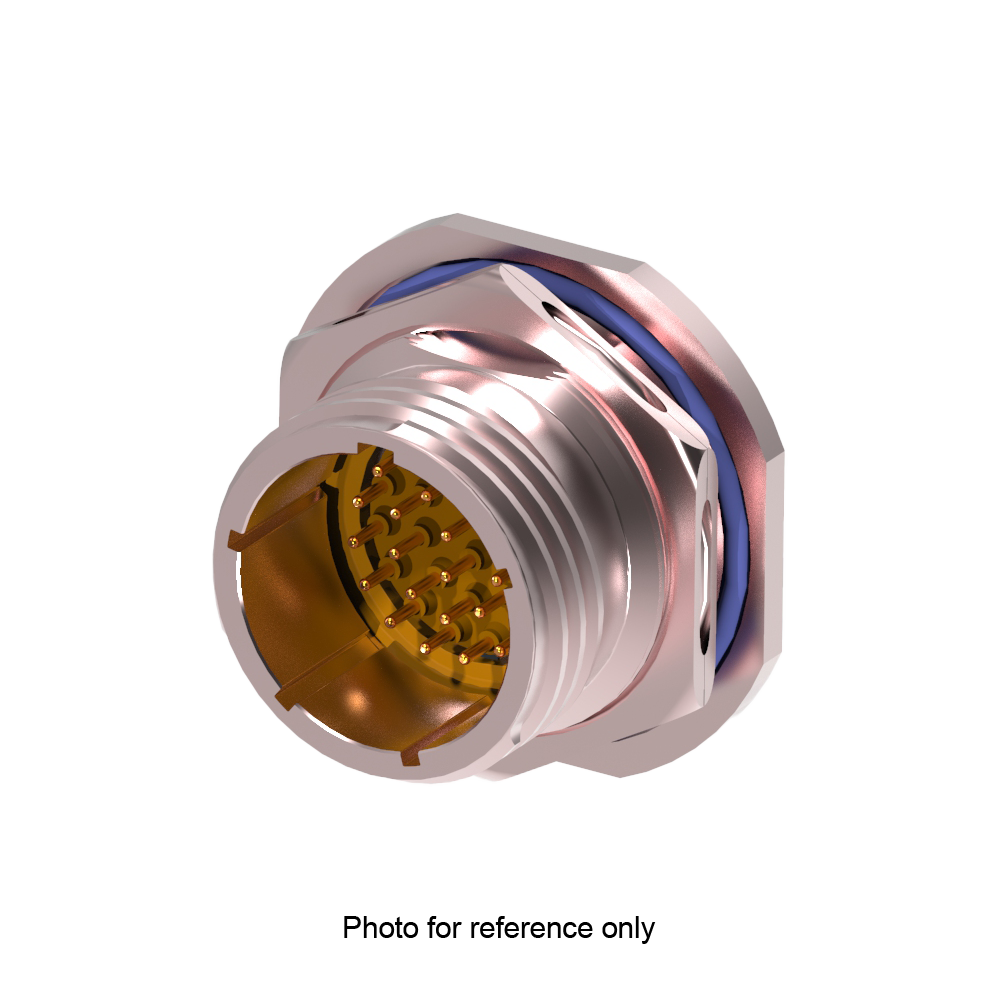

D38999/24FG11PC Jam Nut Receptacle

Name: D38999/24FG11PC Jam Nut Receptacle
Brand: Amphenol Australia
SKU: D38999/24FG11PC
Availability: InStock

IMAGE MAY DIFFER

SKU:D38999/24FG11PC

$0.00 AUD

Sale Sold out

Quantity

Stock Level

Stock levels vary — Contact us for details

Downloads

Specifications

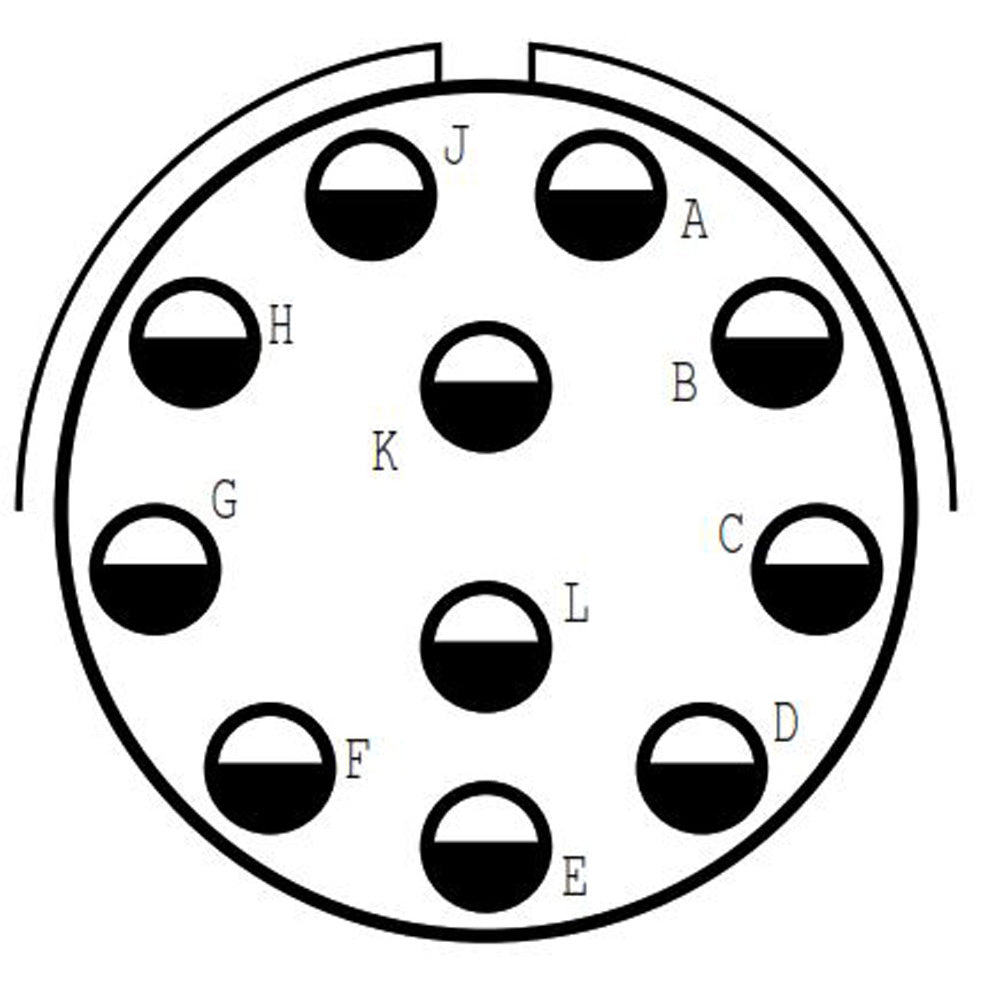

Contact Quantity: 11
Size 12: 11
Contact Type: Pin Contacts
Operating Temperature: -65°C ~ +200°C HD (Quadrax, Twinax not rated over 175°C)
Mating Cycle Durability: 500
Salt Spray: 48 hours
Shell Description: Jam Nut Receptacle
Shell Finish: Electroless Nickel
EMI Sheilding (@1Ghz / @10Ghz): -85dB / -65dB
AC (RMS): 600
DC: 850
Test Voltage (Sea Level): 1800 VRMS
Test Voltage (50K ft.): 600 VRMS
Test Voltage (70K ft.): 400 VRMS
Test Voltage (110K ft.): 200 VRMS View full details
