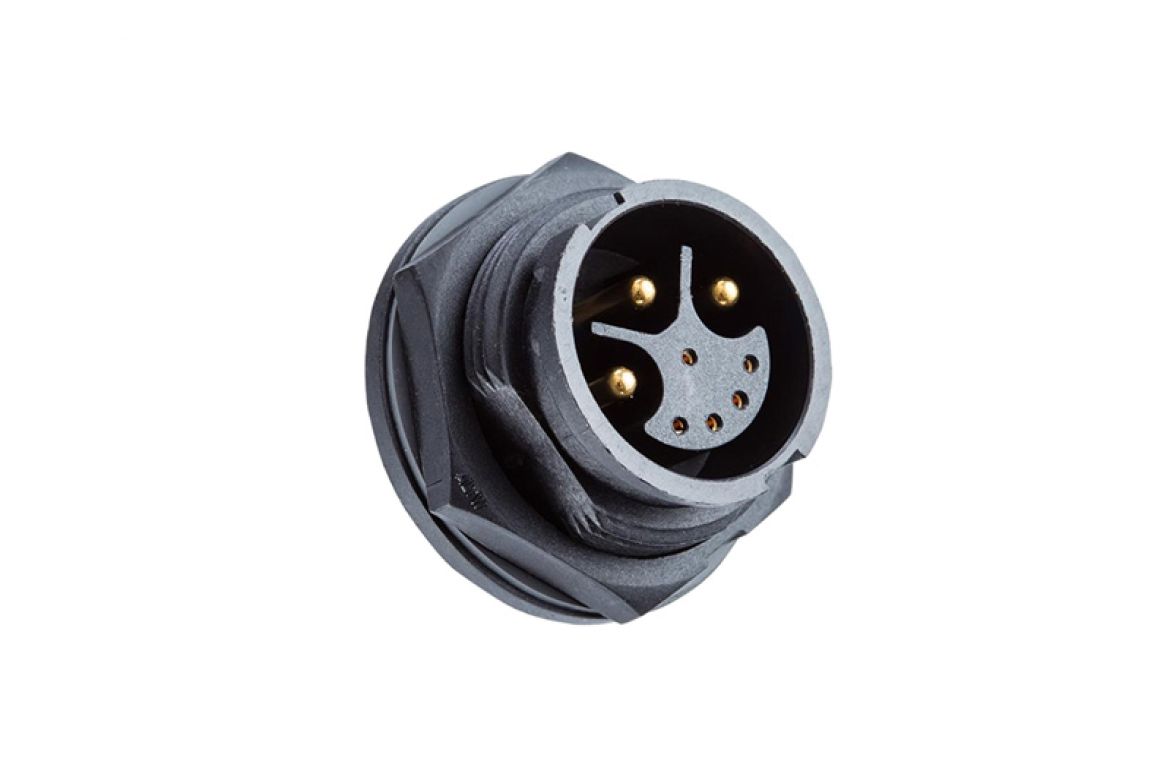

DCD-12PMES-LC7001 Ceres Circular Connector
DCD-12PMES-LC7001 Ceres Circular Connector
IMAGE MAY DIFFER
SKU:DCD-12PMES-LC7001
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Specifications
No. of Positions: 12Contact Material: Plastic, Non-shielded
AWG: 12-16, 20-24 AWG
Amperage: 20A+5A
IP Rating: IP67
Operating Temperature: -40°C ~ +105°C
Mating Cycle Durability: 2000
Shape: Circular
Cable Diameter: N/A
Connector Gender: Male
Contact Gender: Male (Power) + Female (Signal)
Salt Spray: 48h hours
Operating Voltage: 250V
Receptacle Nut Thread: 1 inch - 20 UNEF
Mating Style: 2 Points Lock
Fasten Style: Front
Assembly Style: Solder
Length (mm): N/A
Panel Thickness: With Cap: 3.00；Without Cap: 4.00
Ceres, Large Size, Plastic, 20A+5A, 12 pins, Male Connector, Male (Power) + Female (Signal) Contact, Circular, 2 Points Lock, Solder, Receptacle, IP67 Unmated
