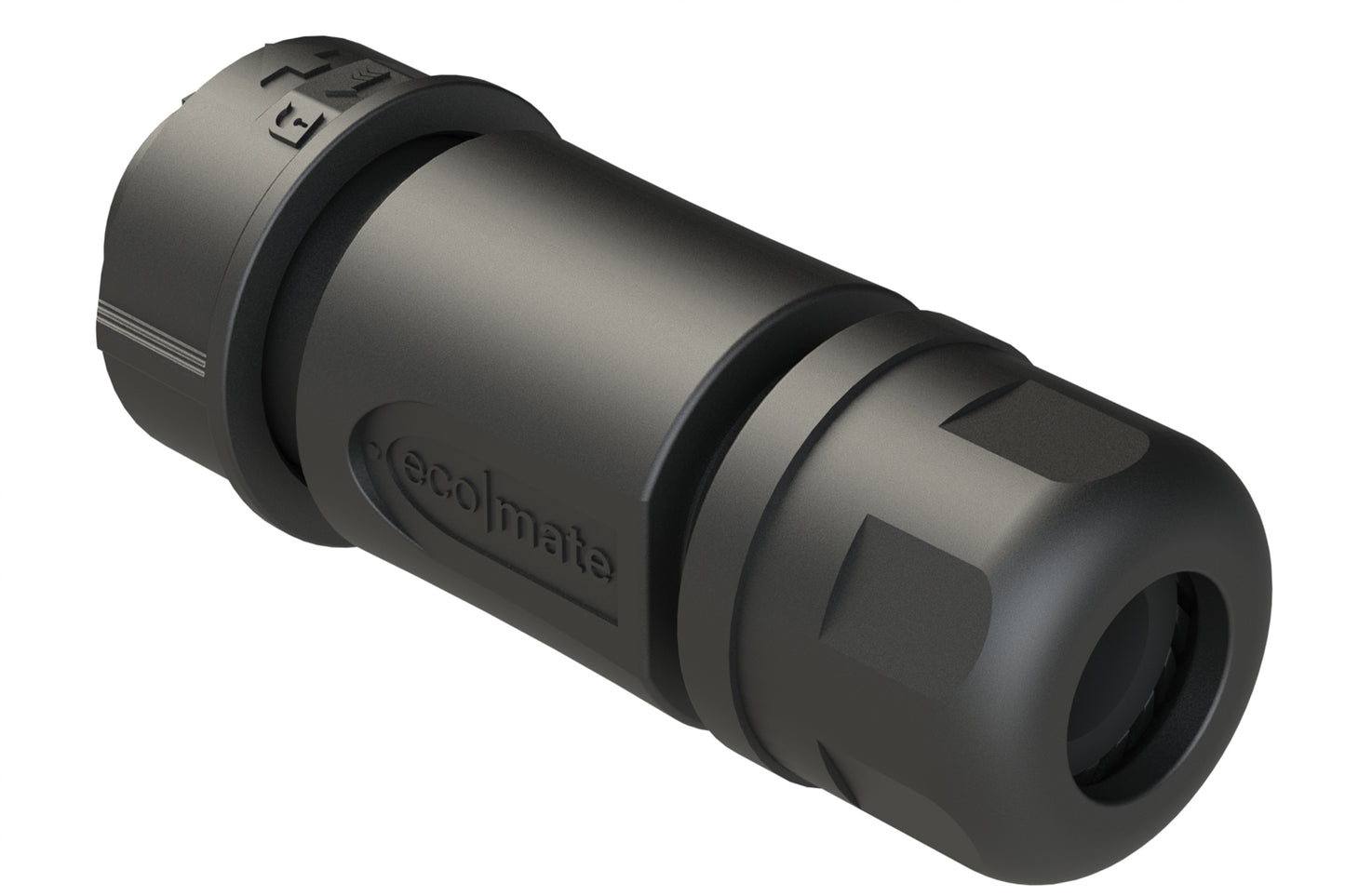

FLS6BS12N2S03 Plug, 4 (2+2) Position, Female, Shell Size 12, Silicone Seal, Back Shell, Cable OD Range 6.0~12.0mm, Auto-Lock
FLS6BS12N2S03 Plug, 4 (2+2) Position, Female, Shell Size 12, Silicone Seal, Back Shell, Cable OD Range 6.0~12.0mm, Auto-Lock
IMAGE MAY DIFFER
SKU:FLS6BS12N2S03
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
DatasheetAssembly Instructions
Specifications
Gender: Female
Shell Size: 12
Contact Size: 20 (1.0mm),12 (2.5mm)
Contact Quantity: 4 (2+2)
AWG: (SZ 12)14-12 / (SZ 20)20-30
Amperage: 23A, 5A(stamped) or 7.5A (machined)
IP Rating: IP67, IP68 (1.8M) and IP69k (in mated condition)
Termination: Crimp
Operating Temperature: -40°C to +125°C
Mating Cycle Durability: >500
Housing Material: Thermoplastic UL94 V-0
Mating Part: FLS712N2P*, FLS012N2P*
Shape: Circular
Plug, 4 (2+2) Position, Female, Shell Size 12, Silicone Seal, Back Shell, Cable OD Range 6.0~12.0mm, Auto-Lock
