HDB-26PMMP-QA8001 D-Sub
HDB-26PMMP-QA8001 D-Sub

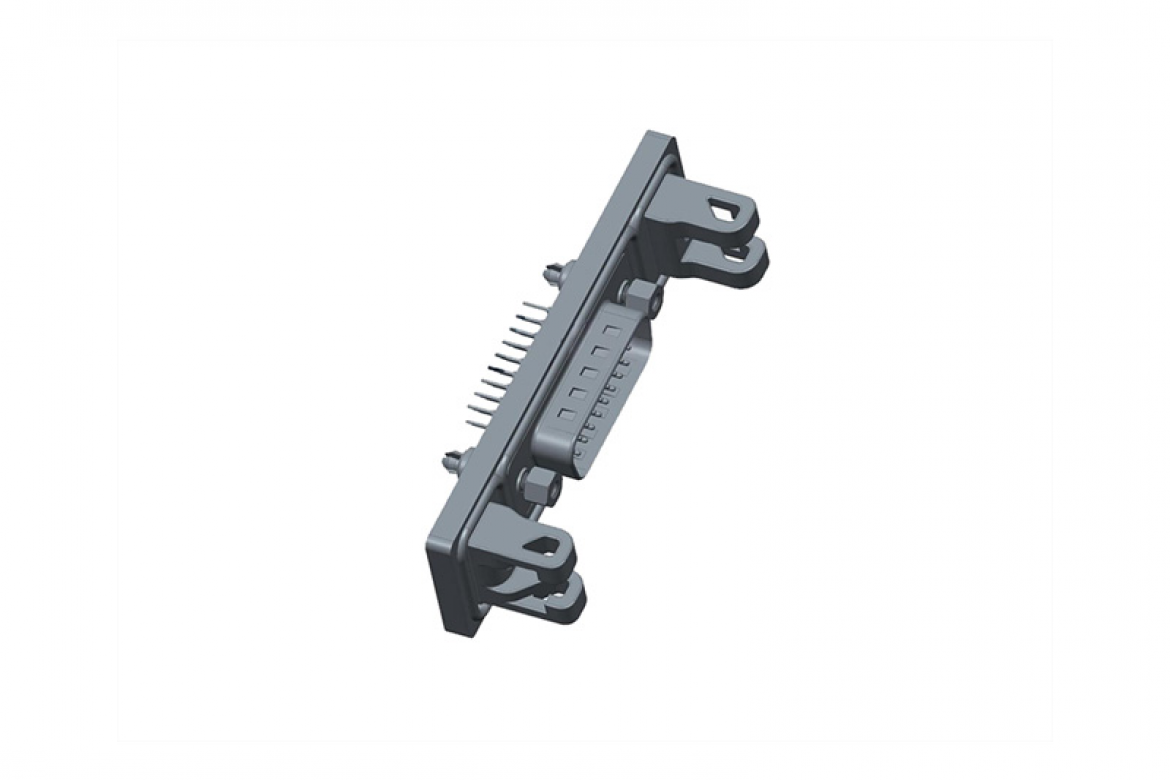

IMAGE MAY DIFFER
SKU:HDB-26PMMP-QA8001
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Specifications
No. of Positions: 26Contact Material: Metal, Shielded
AWG: N/A
Amperage: 2A
IP Rating: IP68
Operating Temperature: -40°C ~ +105°C
Mating Cycle Durability: 500
Shape: Straight With Board Lock
Cable Diameter: N/A
Connector Gender: Male
Contact Gender: Male
Salt Spray: 8h hours
Operating Voltage: 125V DC
Receptacle Nut Thread: 4 inch - 40 UNC
Mating Style: Automated Latch
Fasten Style: Front
Assembly Style: PCB 180°
Length (mm): N/A
Panel Thickness: Refer to Drawing
D-Sub, High Density, Metal, 2A, 26 pins, Male Connector, Male Contact, Straight With Board Lock, Automated Latch, PCB 180°, Receptacle, IP68 Unmated
