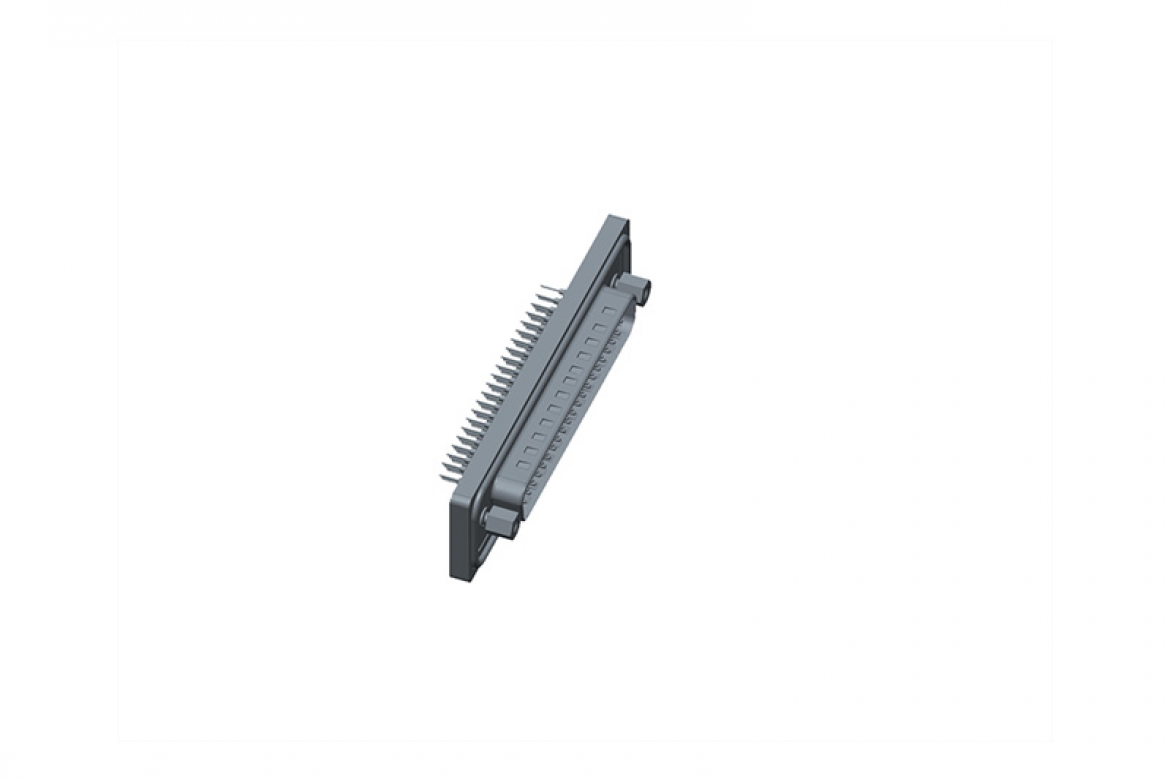

HDB-62PMMP-SL7001 D-Sub

HDB-62PMMP-SL7001 D-Sub

IMAGE MAY DIFFER

SKU:HDB-62PMMP-SL7001

Regular price $0.00 AUD
Regular price Sale price $0.00 AUD
Sale Sold out

Downloads

Datasheet
3D Model

Specifications

No. of Positions: 62
Contact Material: Metal, Shielded
AWG: N/A
Amperage: 2A
IP Rating: IP67
Operating Temperature: -40°C ~ +105°C
Mating Cycle Durability: 500
Shape: Straight Without Board Lock
Cable Diameter: N/A
Connector Gender: Male
Contact Gender: Male
Salt Spray: 8h
Operating Voltage: 125V DC
Receptacle Nut Thread: 4 inch - 40 UNC
Mating Style: Screw Thread
Fasten Style: Front
Assembly Style: PCB 180°
Length (mm): N/A
Panel Thickness: Refer to Drawing

D-Sub, High Density, Metal, 2A, 62 pins, Male Connector, Male Contact, Straight Without Board Lock, Screw Thread, PCB 180°, Receptacle, IP67 Unmated
