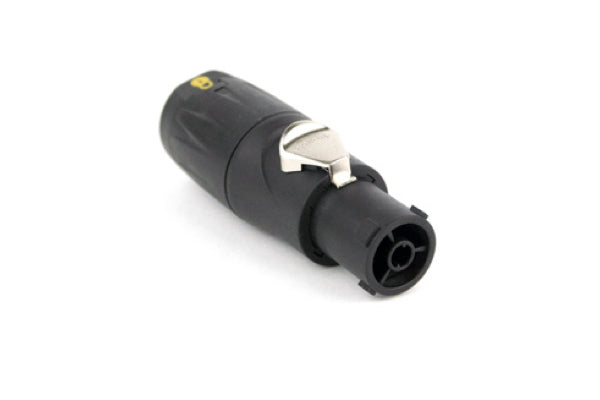

HPT-3-F Female/Outlet Cable Plug, ScrewTermiation, Locking backshell. Comparable part no: NAC3FX-W-TOP

Name: HPT-3-F Female/Outlet Cable Plug, ScrewTermiation, Locking backshell. Comparable part no: NAC3FX-W-TOP
Brand: Amphenol Audio
SKU: HPT-3-F
Availability: InStock

IMAGE MAY DIFFER

SKU:HPT-3-F

$0.00 AUD

Sale Sold out

Quantity

Stock Level

Stock levels vary — Contact us for details

Downloads

Datasheet
3D Model
Assembly Instructions

Specifications

No. of Positions: 3
Gender: Female
Finish: Black
Current Carrying Capacity: 16A (20A USA)
IP Rating: IP65 & UL50E Type 4 Enclosure Rated (when used with Spring or chain caps)
Contact Type: Screw
Contact Plating: Silver
Termination: 2mm Hex key screw terminal
Flammability Rating: UL94V-0
Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
Typical Contact Resistance: >2mΩ
Insulation Resistance: >2GΩ
Operating Temperature: -25°C to +80°C (-13°F to +176°F
Housing Material: PA66 GF30 / Black

Female/Outlet Cable Plug, Screw Termiation, Locking backshell
