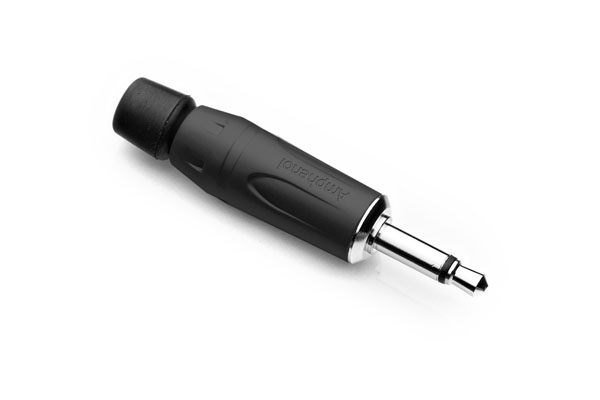

KM2PB-AU 3.5mm Phone Plug, Mono, Gold Plated Contact,Matt Black Shell
KM2PB-AU 3.5mm Phone Plug, Mono, Gold Plated Contact,Matt Black Shell
IMAGE MAY DIFFER
SKU:KM2PB-AU
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
DatasheetAssembly Instructions
Specifications
No. of Positions: 2Finish: Black
Current Carrying Capacity: >0.5mA (Depending on mating connector ad cable)
IP Rating: IP40
Contact Plating: Gold
Termination: Solder
Max Wire Gauge: 16AWG -1.5mm²
Flammability Rating: UL94V-0 or UL94-HB
Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
Typical Contact Resistance: < 20mΩ (Depends on mating connector)
Insulation Resistance: >200MΩ / >100MΩ after Damp Heat Test
Operating Temperature: -20°C to +65°C (-4°F to 149°F)
Mating Cycle Durability: 1000
Housing Material: Diecast Zinc Alloy EZDA No.3
3.5mm Phone Plug, Mono, Gold Plated Contact, Matt Black Shell
