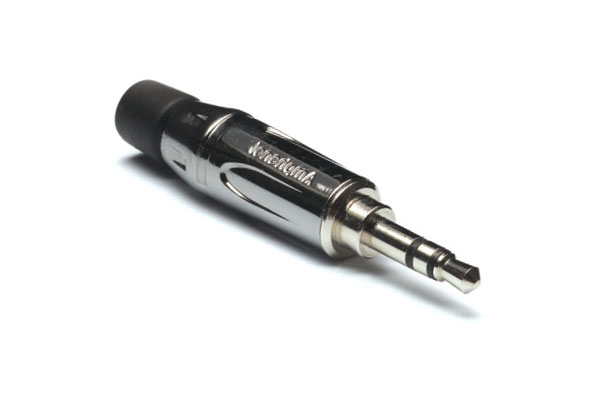

KS3PC-AU 3.5mm Phone Plug, Stereo, Gold Plated Contacts, Black Chrome Shell
KS3PC-AU 3.5mm Phone Plug, Stereo, Gold Plated Contacts, Black Chrome Shell
IMAGE MAY DIFFER
SKU:KS3PC-AU
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
DatasheetAssembly Instructions
Specifications
No. of Positions: 3Finish: Black Chrome
Current Carrying Capacity: >0.5mA (Depending on mating connector ad cable)
IP Rating: IP40
Contact Plating: Gold
Termination: Solder
Max Wire Gauge: 18AWG -1mm²
Flammability Rating: UL94V-0 or UL94-HB
Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
Typical Contact Resistance: < 20mΩ (Depends on mating connector)
Insulation Resistance: >200MΩ / >100MΩ after Damp Heat Test
Operating Temperature: -20°C to +65°C (-4°F to 149°F)
Mating Cycle Durability: 1000
Housing Material: Diecast Zinc Alloy EZDA No.3
3.5mm Phone Plug, Stereo, Gold Plated Contacts, Black Chrome Shell
