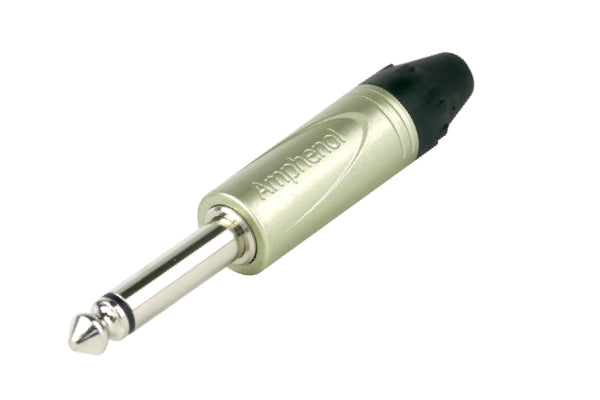

QM2P 1/4" Phone Plug,Mono, Straight, Standard Contacts, Nickel Finish

Name: QM2P 1/4" Phone Plug,Mono, Straight, Standard Contacts, Nickel Finish
Brand: Amphenol Audio
SKU: QM2P
Availability: InStock

IMAGE MAY DIFFER

SKU:QM2P

$0.00 AUD

Sale Sold out

Quantity

Downloads

Stock Level

0 Datasheet
3D Model
Assembly Instructions

Specifications

No. of Positions: 1
Finish: Nickel
Current Carrying Capacity: 10A (Depends on Mating Connector and Cable)
IP Rating: IP40
Contact Plating: Nickel
Termination: Solder
Max Wire Gauge: 16AWG-1.5mm
Flammability Rating: UL94V-0 or UL94-HB
Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
Operating Temperature: -25°C to +75°C (-13°F to + 167°F)
Mating Cycle Durability: 1000
Housing Material: Diecast Zinc Alloy EZDA No.3

1/4" Phone Plug, Mono, Straight, Standard Contacts, Nickel Finish
