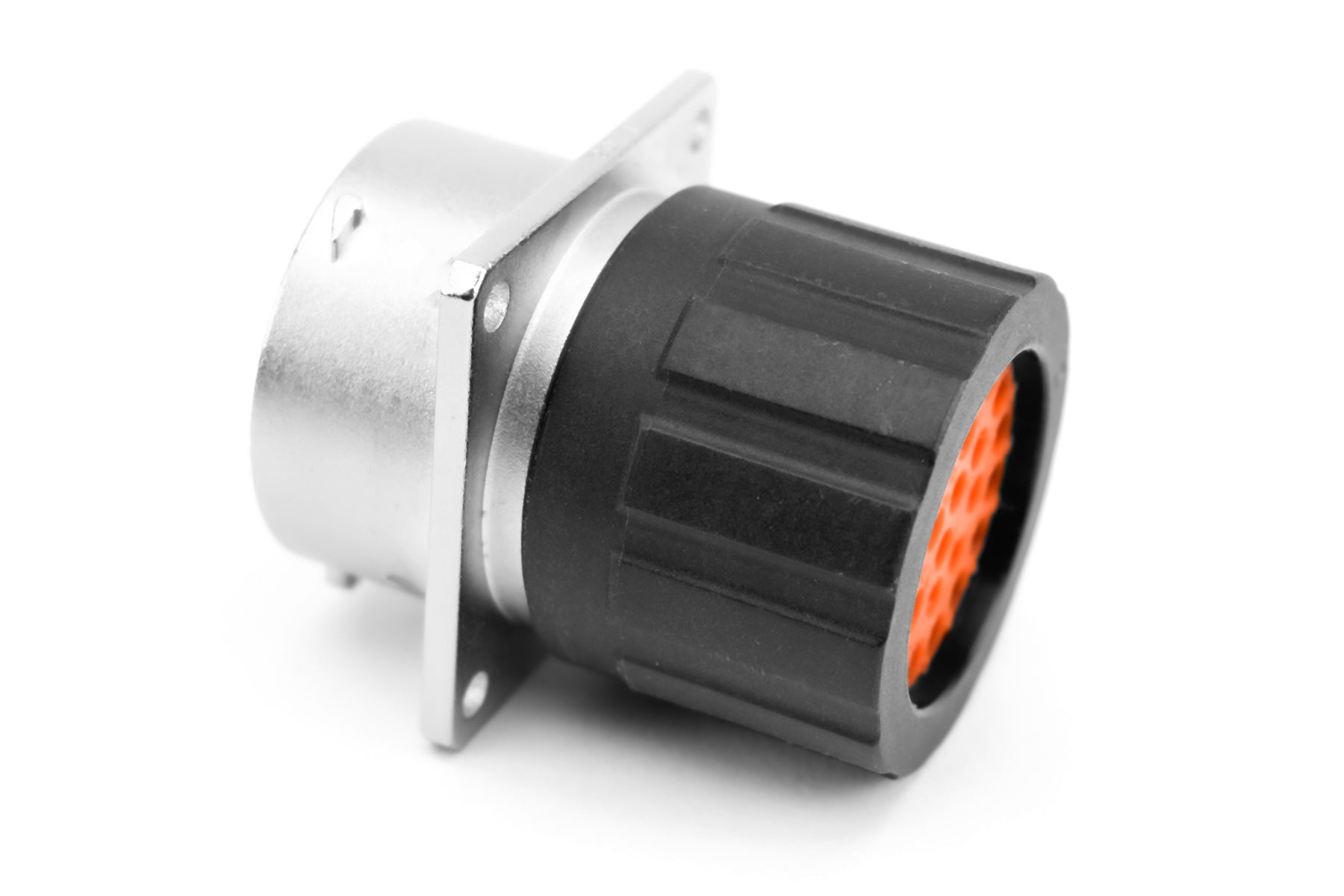

RT0W01210SNHEC03 10 Position Square Flange Receptacle, Female, Shell Size 12, Silicone Seal, and End Cap with Reduced Diameter Individual Wire Sealing, Range 20 - 30AWG
RT0W01210SNHEC03 10 Position Square Flange Receptacle, Female, Shell Size 12, Silicone Seal, and End Cap with Reduced Diameter Individual Wire Sealing, Range 20 - 30AWG
IMAGE MAY DIFFER
SKU:RT0W01210SNHEC03
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
Gender: Female
Shell Size: 12
Contact Size: 20
Contact Quantity: 10
AWG: 20-30
Amperage: 5A (stamped) or 7.5A (machined)
IP Rating: IP67
Termination: Crimp
Operating Temperature: -40°C to +125°C
Mating Cycle Durability: 500
Housing Material: Zinc Alloy, Nickel Plated
Mating Part: RT0W61210PNH*
Shape: Circular
10 Position Square Flange Receptacle, Female, Shell Size 12, Silicone Seal, and End Cap with Reduced Diameter Individual Wire Sealing, Range 20 - 30AWG
