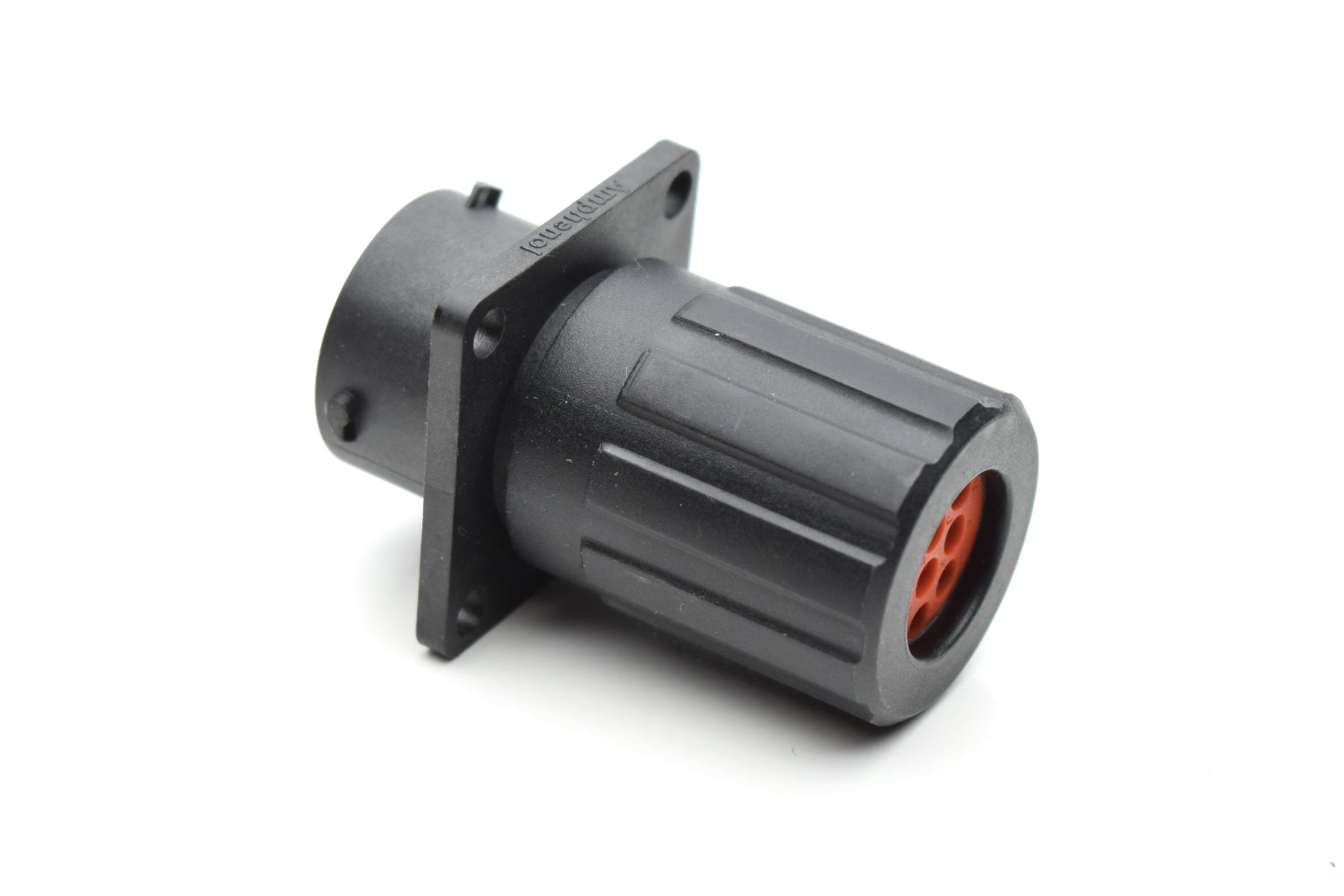

RTS012N10PHEC03 Receptacle, Square Flange, 10 Position, Male, Shell Size 12, with Silicone Seal, End Cap with Individual Wire Sealing. Comparable part no. UTS0GN1210P
RTS012N10PHEC03 Receptacle, Square Flange, 10 Position, Male, Shell Size 12, with Silicone Seal, End Cap with Individual Wire Sealing. Comparable part no. UTS0GN1210P
IMAGE MAY DIFFER
SKU:RTS012N10PHEC03
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
Gender: Male
Shell Size: 12
Contact Size: 20
Contact Quantity: 10
AWG: 20-30
Amperage: 5A(stamped) or 7.5A (machined)
IP Rating: IP67 / IP69k (in mated condition)
Termination: Crimp
Operating Temperature: -40°C to +125°C
Mating Cycle Durability: >500
Housing Material: Thermoplastic UL94 V-0
Mating Part: RTS6BS12N10S*
Shape: Circular
Receptacle, Square Flange, 10 Position, Male, Shell Size 12, with Silicone Seal, End Cap with Individual Wire Sealing
