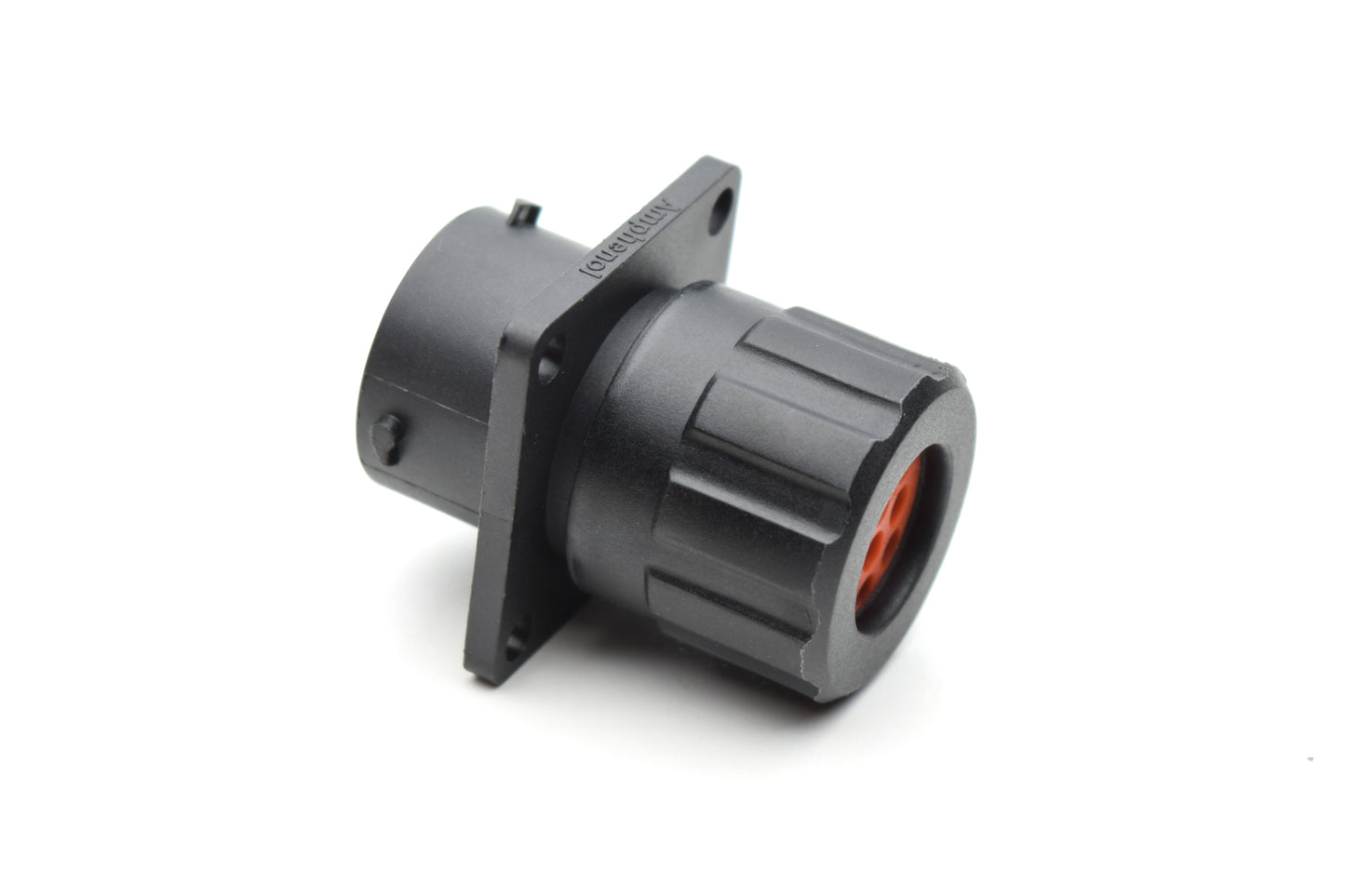

RTS012N10SHEC03 Receptacle, Square Flange, 4 (2+2) Position, Female, Shell Size 12, with Silicone Seal, and End Cap with Individual Wire Sealing. Comparable part no. UTS0GN1210S

Name: RTS012N10SHEC03 Receptacle, Square Flange, 4 (2+2) Position, Female, Shell Size 12, with Silicone Seal, and End Cap with Individual Wire Sealing. Comparable part no. UTS0GN1210S
Brand: Amphenol Australia
SKU: RTS012N10SHEC03
Availability: InStock

IMAGE MAY DIFFER

SKU:RTS012N10SHEC03

$0.00 AUD

Sale Sold out

Quantity

Stock Level

Stock levels vary — Contact us for details

Downloads

Datasheet
3D Model
Assembly Instructions

Specifications

Gender: Female
Shell Size: 12
Contact Size: 20
Contact Quantity: 10
AWG: 20-30
Amperage: 5A(stamped) or 7.5A (machined)
IP Rating: IP67 / IP69k (in mated condition)
Termination: Crimp
Operating Temperature: -40°C to +125°C
Mating Cycle Durability: >500
Housing Material: Thermoplastic UL94 V-0
Mating Part: RTS6BS12N10P*
Shape: Circular

Receptacle, Square Flange, 4 (2+2) Position, Female, Shell Size 12, with Silicone Seal, and End Cap with Individual Wire Sealing
