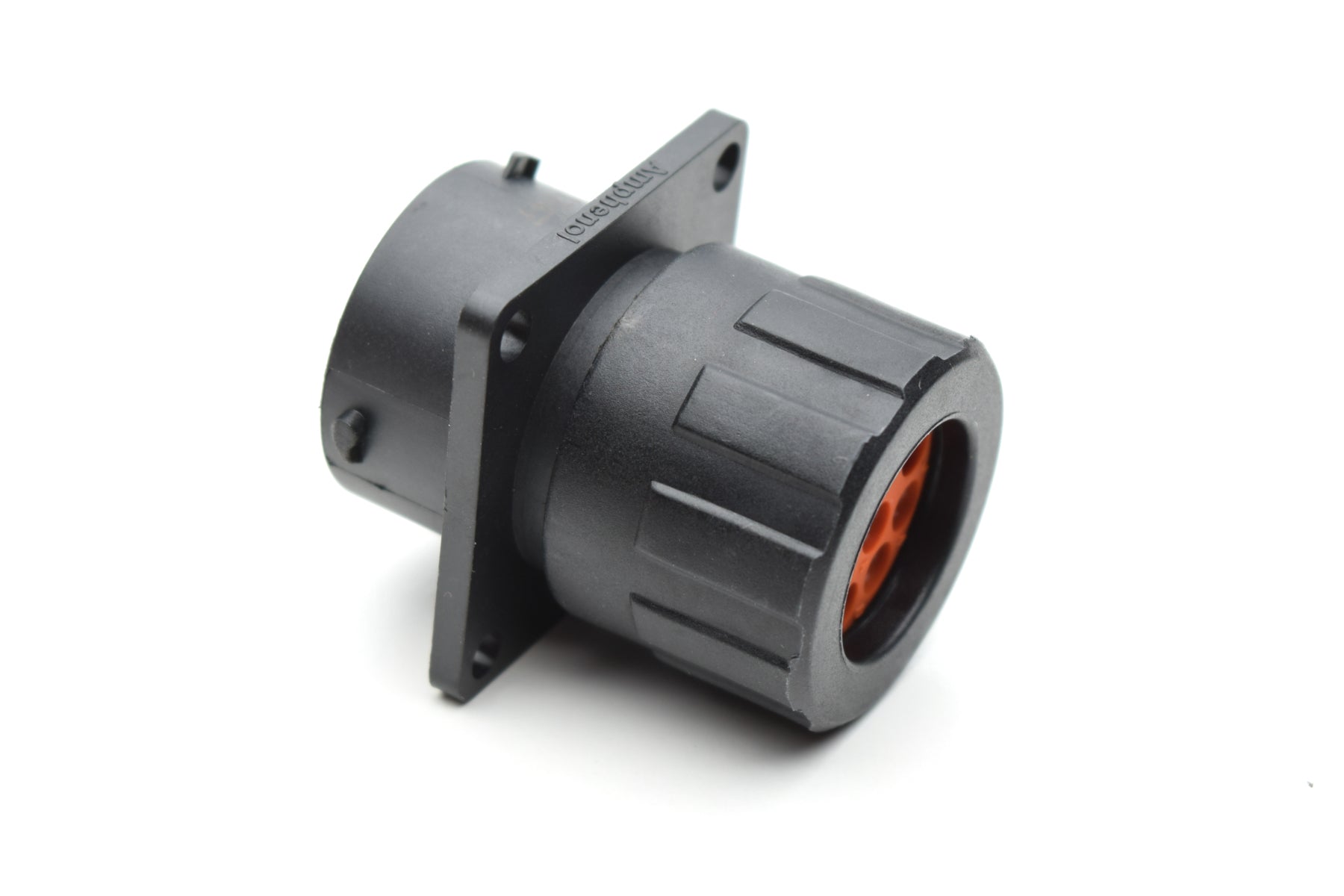

RTS014N12SHEC03 Receptacle, Square Flange, 12 Position, Female, Shell Size 14, with Silicone Seal and End Cap with Individual Wire Sealing. Comparable part no. UTS0GN1412S

Name: RTS014N12SHEC03 Receptacle, Square Flange, 12 Position, Female, Shell Size 14, with Silicone Seal and End Cap with Individual Wire Sealing. Comparable part no. UTS0GN1412S
Brand: Amphenol Australia
SKU: RTS014N12SHEC03
Availability: InStock

IMAGE MAY DIFFER

SKU:RTS014N12SHEC03

$0.00 AUD

Sale Sold out

Quantity

Stock Level

Stock levels vary — Contact us for details

Downloads

Datasheet
3D Model
Assembly Instructions

Specifications

Gender: Female
Shell Size: 14
Contact Size: 16
Contact Quantity: 12
AWG: 14-26
Amperage: 13A
IP Rating: IP67 / IP69k (in mated condition)
Termination: Crimp
Operating Temperature: -40°C to +125°C
Mating Cycle Durability: >500
Housing Material: Thermoplastic UL94 V-0
Mating Part: RTS6BS14N12P*
Shape: Circular

Receptacle, Square Flange, 12 Position, Female, Shell Size 14, with Silicone Seal and End Cap with Individual Wire Sealing
