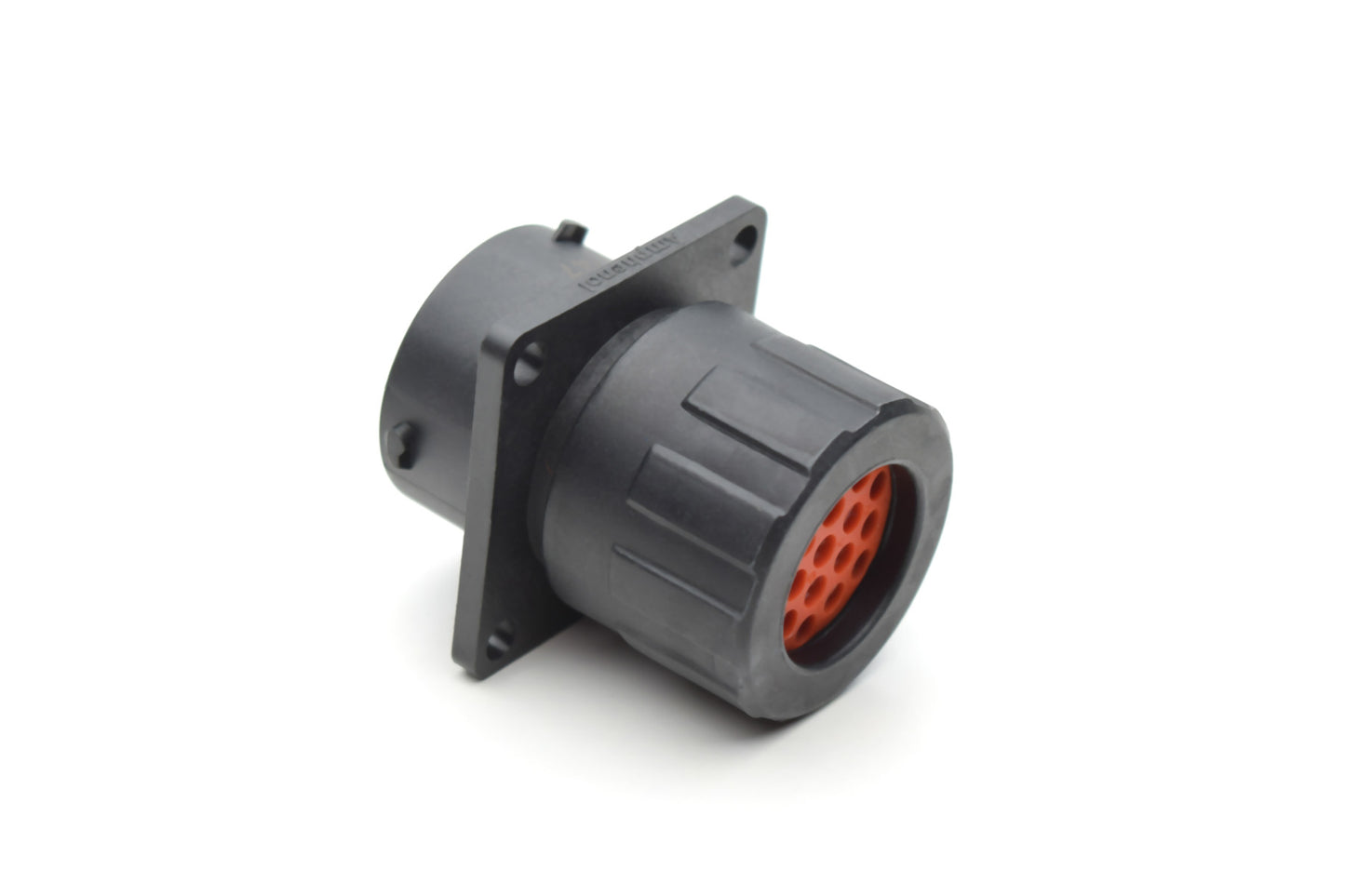

RTS014N19SHEC03 Receptacle, Square Flange, 19 Position, Female, Shell Size 14, with Silicone Seal, and End Cap with Individual Wire Sealing. Comparable part no. UTS0GN1419S

Name: RTS014N19SHEC03 Receptacle, Square Flange, 19 Position, Female, Shell Size 14, with Silicone Seal, and End Cap with Individual Wire Sealing. Comparable part no. UTS0GN1419S
Brand: Amphenol Australia
SKU: RTS014N19SHEC03
Availability: InStock

IMAGE MAY DIFFER

SKU:RTS014N19SHEC03

$0.00 AUD

Sale Sold out

Quantity

Stock Level

Stock levels vary — Contact us for details

Downloads

Datasheet
3D Model
Assembly Instructions

Specifications

Gender: Female
Shell Size: 14
Contact Size: 20
Contact Quantity: 19
AWG: 20-30
Amperage: 5A(stamped) or 7.5A (machined)
IP Rating: IP67 / IP69k (in mated condition)
Termination: Crimp
Operating Temperature: -40°C to +125°C
Mating Cycle Durability: >500
Housing Material: Thermoplastic UL94 V-0
Mating Part: RTS6BS14N19P*
Shape: Circular

Receptacle, Square Flange, 19 Position, Female, Shell Size 14, with Silicone Seal, and End Cap with Individual Wire Sealing
