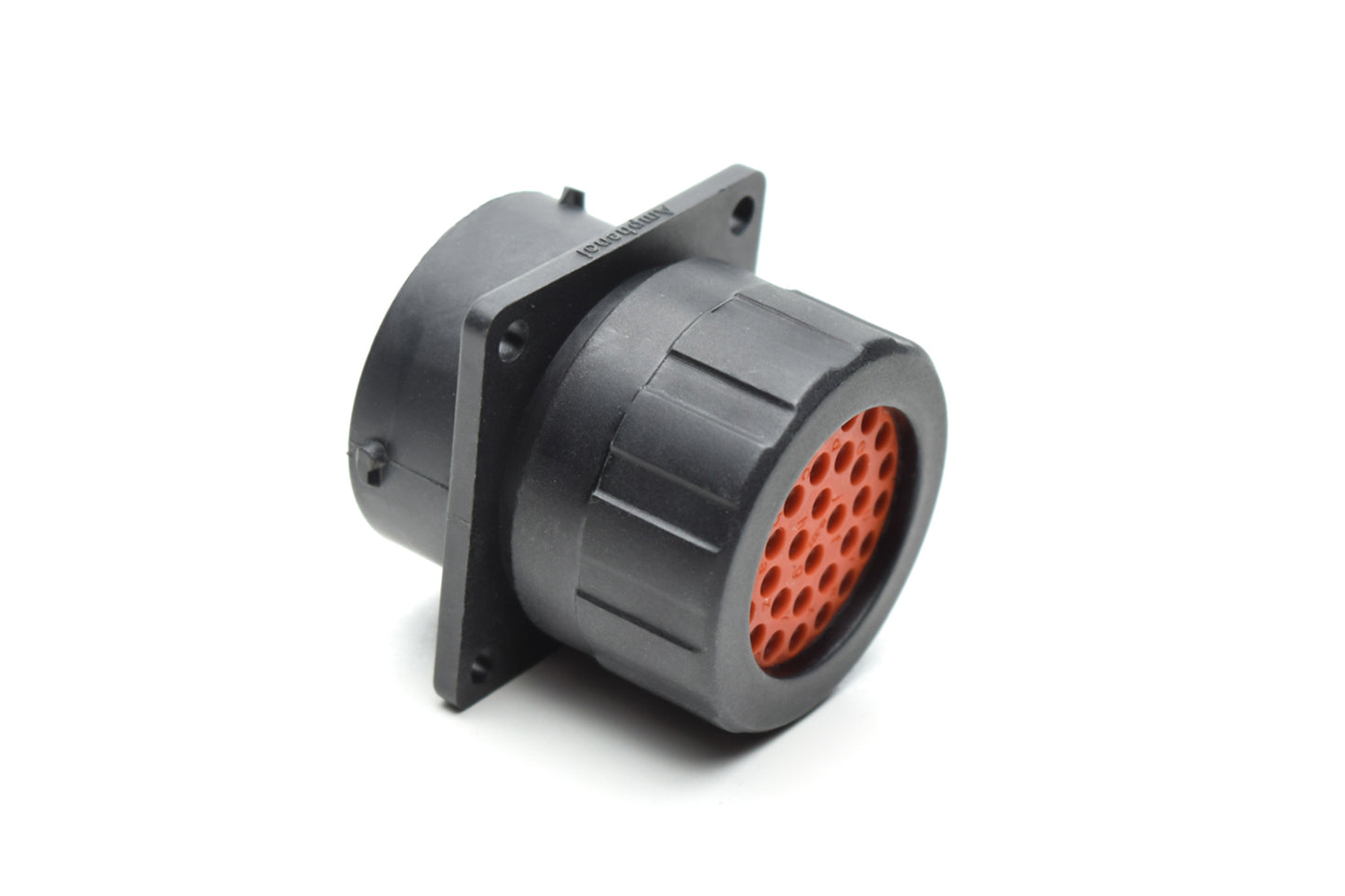

RTS018N32SHEC03 Receptacle, Square Flange, 32 Position, Female, Shell Size 18, Silicone Seal, and End Cap with Individual Wire Sealing. Comparable part no. UTS0GN1832S

Name: RTS018N32SHEC03 Receptacle, Square Flange, 32 Position, Female, Shell Size 18, Silicone Seal, and End Cap with Individual Wire Sealing. Comparable part no. UTS0GN1832S
Brand: Amphenol Australia
SKU: RTS018N32SHEC03
Availability: InStock

IMAGE MAY DIFFER

SKU:RTS018N32SHEC03

$0.00 AUD

Sale Sold out

Quantity

Stock Level

Stock levels vary — Contact us for details

Downloads

Datasheet
3D Model
Assembly Instructions

Specifications

Gender: Female
Shell Size: 18
Contact Size: 20
Contact Quantity: 32
AWG: 20-30
Amperage: 5A(stamped) or 7.5A (machined)
IP Rating: IP67 / IP69k (in mated condition)
Termination: Crimp
Operating Temperature: -40°C to +125°C
Mating Cycle Durability: >500
Housing Material: Thermoplastic UL94 V-0
Mating Part: RTS6BS18N32P*
Shape: Circular

Receptacle, Square Flange, 32 Position, Female, Shell Size 18, Silicone Seal, and End Cap with Individual Wire Sealing
