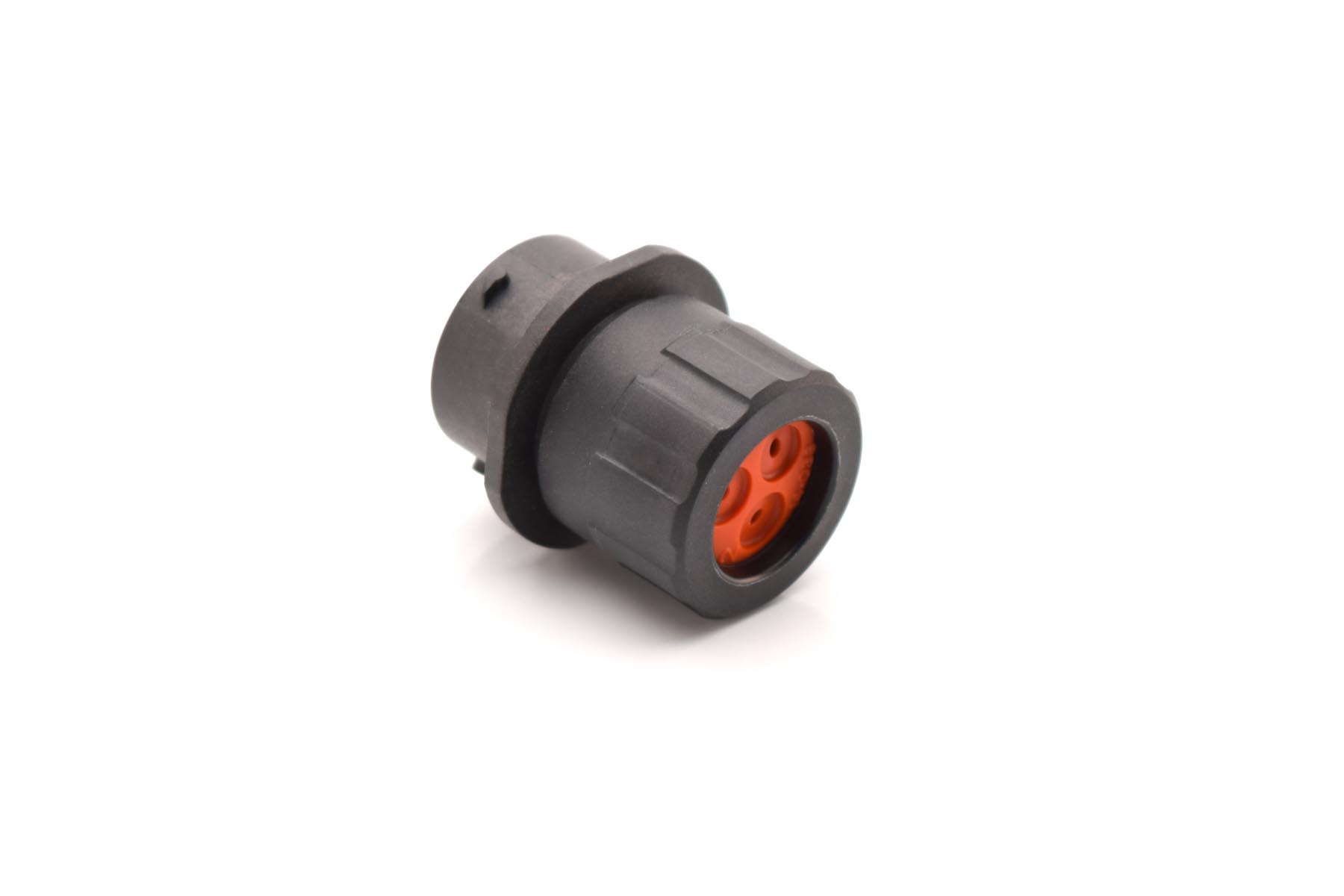

RTS1BS14N3SHEC03 Receptacle, Inline, 3 Position, Female, Shell Size 14, Silicone Seal, and End Cap with Individual Wire Sealing. Comparable part no. UTS6GN142G1S
RTS1BS14N3SHEC03 Receptacle, Inline, 3 Position, Female, Shell Size 14, Silicone Seal, and End Cap with Individual Wire Sealing. Comparable part no. UTS6GN142G1S
IMAGE MAY DIFFER
SKU:RTS1BS14N3SHEC03
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
Gender: Female
Shell Size: 14
Contact Size: #8 (3.6mm)
Contact Quantity: 3
AWG: 12-10
Amperage: 45A
IP Rating: IP67 / IP69k (in mated condition)
Termination: Crimp
Operating Temperature: -40°C to +125°C
Mating Cycle Durability: >500
Housing Material: Thermoplastic UL94 V-0
Mating Part: RTS6BS14N3P*
Shape: Circular
Receptacle, Inline, 3 Position, Female, Shell Size 14, Silicone Seal, and End Cap with Individual Wire Sealing
