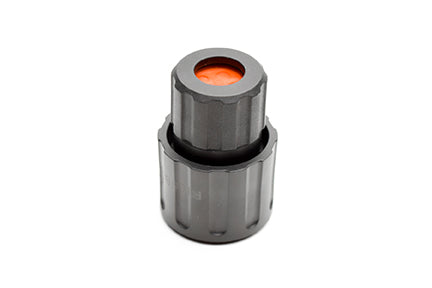

RTS6BS10N2SHEC03 Plug, 4 (2+2) Position, Female, Shell Size 10, Silicone Seal, and End Cap with Individual Wire Sealing
RTS6BS10N2SHEC03 Plug, 4 (2+2) Position, Female, Shell Size 10, Silicone Seal, and End Cap with Individual Wire Sealing
IMAGE MAY DIFFER
SKU:RTS6BS10N2SHEC03
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
Datasheet3D Model
Assembly Instructions
Specifications
Gender: Female
Shell Size: 10
Contact Size: 16,20
Contact Quantity: 4 (2+2)
AWG: (SZ 16) 14-26 & (SZ 20) 20-30
Amperage: 3A & 5A(stamped) or 7.5A (machined)
IP Rating: IP67 / IP69k (in mated condition)
Termination: Crimp
Operating Temperature: -40°C to +125°C
Mating Cycle Durability: >500
Housing Material: Thermoplastic UL94 V-0
Mating Part: RTS710N2P*, RTS010N2P*, RTS1BS10N2P*
Shape: Circular
Plug, 4 (2+2) Position, Female, Shell Size 10, Silicone Seal, and End Cap with Individual Wire Sealing
