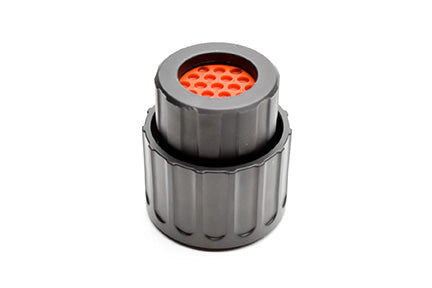

RTS6BS14N19SHEC03 Plug, 19 Position, Female, Shell Size 14, Silicone Seal, and End Cap with Individual Wire Sealing. Comparable part no. UTS6GN1419S
RTS6BS14N19SHEC03 Plug, 19 Position, Female, Shell Size 14, Silicone Seal, and End Cap with Individual Wire Sealing. Comparable part no. UTS6GN1419S
IMAGE MAY DIFFER
SKU:RTS6BS14N19SHEC03
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
Gender: Female
Shell Size: 14
Contact Size: 20
Contact Quantity: 19
AWG: 20-30
Amperage: 5A(stamped) or 7.5A (machined)
IP Rating: IP67 / IP69k (in mated condition)
Termination: Crimp
Operating Temperature: -40°C to +125°C
Mating Cycle Durability: >500
Housing Material: Thermoplastic UL94 V-0
Mating Part: RTS714N19P*,RTS014N19P*,RTS1BS14N19P*
Shape: Circular
Plug, 19 Position, Female, Shell Size 14, Silicone Seal, and End Cap with Individual Wire Sealing
