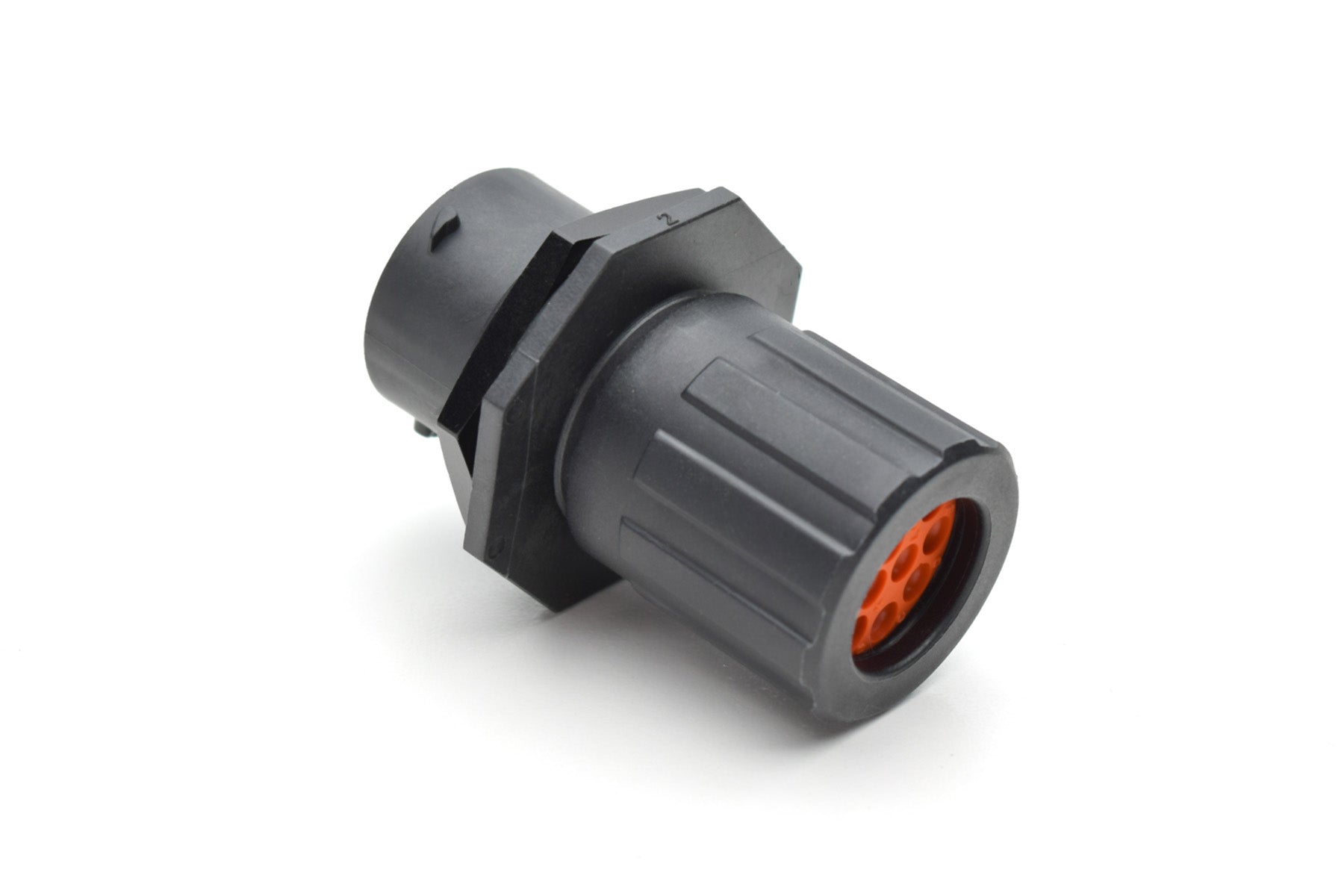

RTS714N12PHEC03 Receptacle, Jam Nut, 12 Position, Male, Shell Size 14, Silicone Seal, and End Cap with Individual Wire Sealing. Comparable part no. UTS7GN1412P

Name: RTS714N12PHEC03 Receptacle, Jam Nut, 12 Position, Male, Shell Size 14, Silicone Seal, and End Cap with Individual Wire Sealing. Comparable part no. UTS7GN1412P
Brand: Amphenol Australia
SKU: RTS714N12PHEC03
Availability: InStock

IMAGE MAY DIFFER

SKU:RTS714N12PHEC03

$0.00 AUD

Sale Sold out

Quantity

Stock Level

Stock levels vary — Contact us for details

Downloads

Datasheet
3D Model
Assembly Instructions

Specifications

Gender: Male
Shell Size: 14
Contact Size: 16
Contact Quantity: 12
AWG: 14-24
Amperage: 13A
IP Rating: IP67 / IP69k (in mated condition)
Termination: Crimp
Operating Temperature: -40°C to +125°C
Mating Cycle Durability: >500
Housing Material: Thermoplastic UL94 V-0
Mating Part: RTS6BS14N12S*
Shape: Circular

Receptacle, Jam Nut, 12 Position, Male, Shell Size 14, Silicone Seal, and End Cap with Individual Wire Sealing
