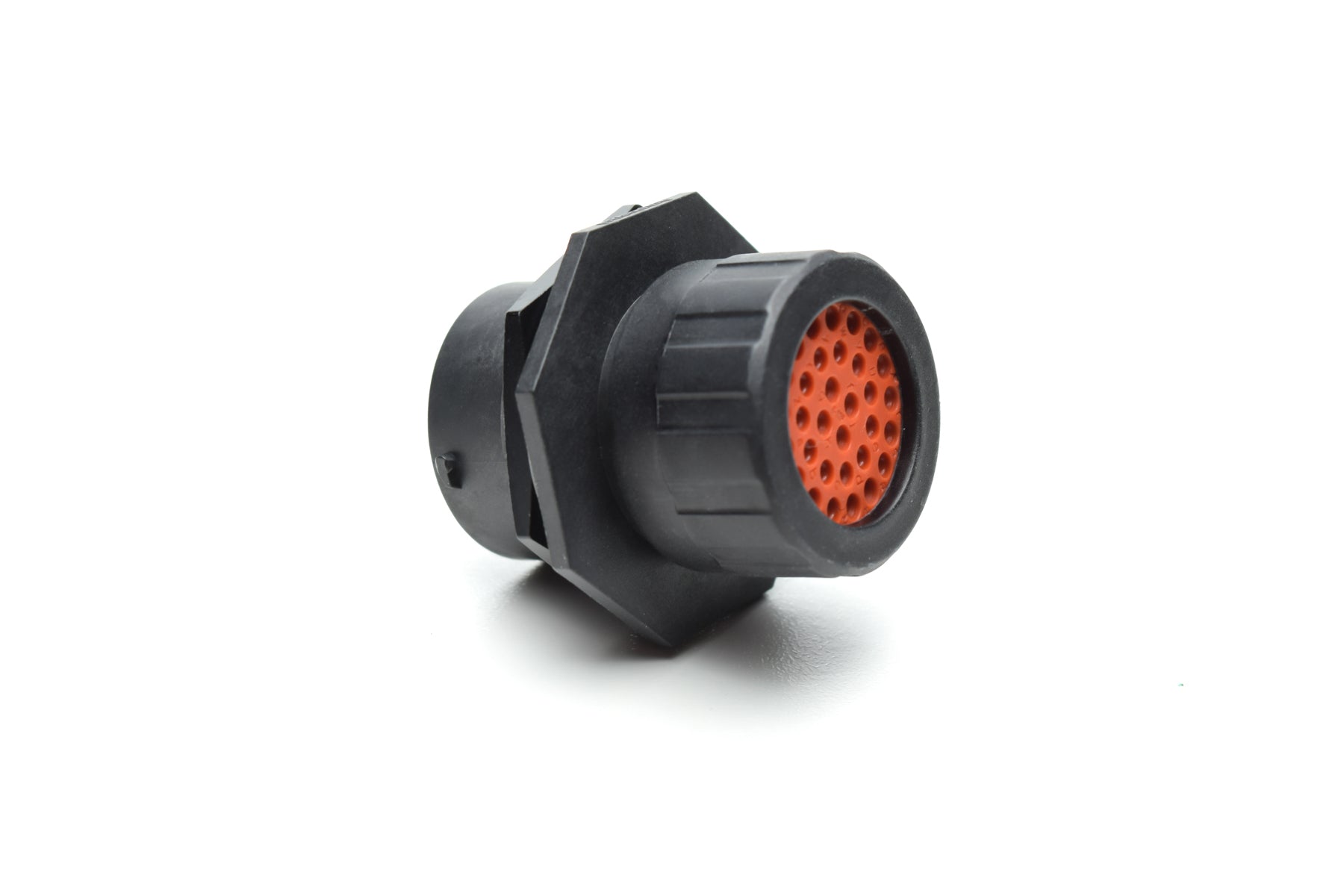

RTS718N32PHEC03 Receptacle, Jam Nut, 32 Position, Male, Shell Size 18, Silicone Seal, and End Cap with Individual Wire Sealing. Comparable part no. UTS7GN1832P
RTS718N32PHEC03 Receptacle, Jam Nut, 32 Position, Male, Shell Size 18, Silicone Seal, and End Cap with Individual Wire Sealing. Comparable part no. UTS7GN1832P
IMAGE MAY DIFFER
SKU:RTS718N32PHEC03
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
Gender: Male
Shell Size: 18
Contact Size: 20
Contact Quantity: 32
AWG: 20-30
Amperage: 5A(stamped) or 7.5A (machined)
IP Rating: IP67 / IP69k (in mated condition)
Termination: Crimp
Operating Temperature: -40°C to +125°C
Mating Cycle Durability: >500
Housing Material: Thermoplastic UL94 V-0
Mating Part: RTS6BS18N32S*
Shape: Circular
Receptacle, Jam Nut, 32 Position, Male, Shell Size 18, Silicone Seal, and End Cap with Individual Wire Sealing
