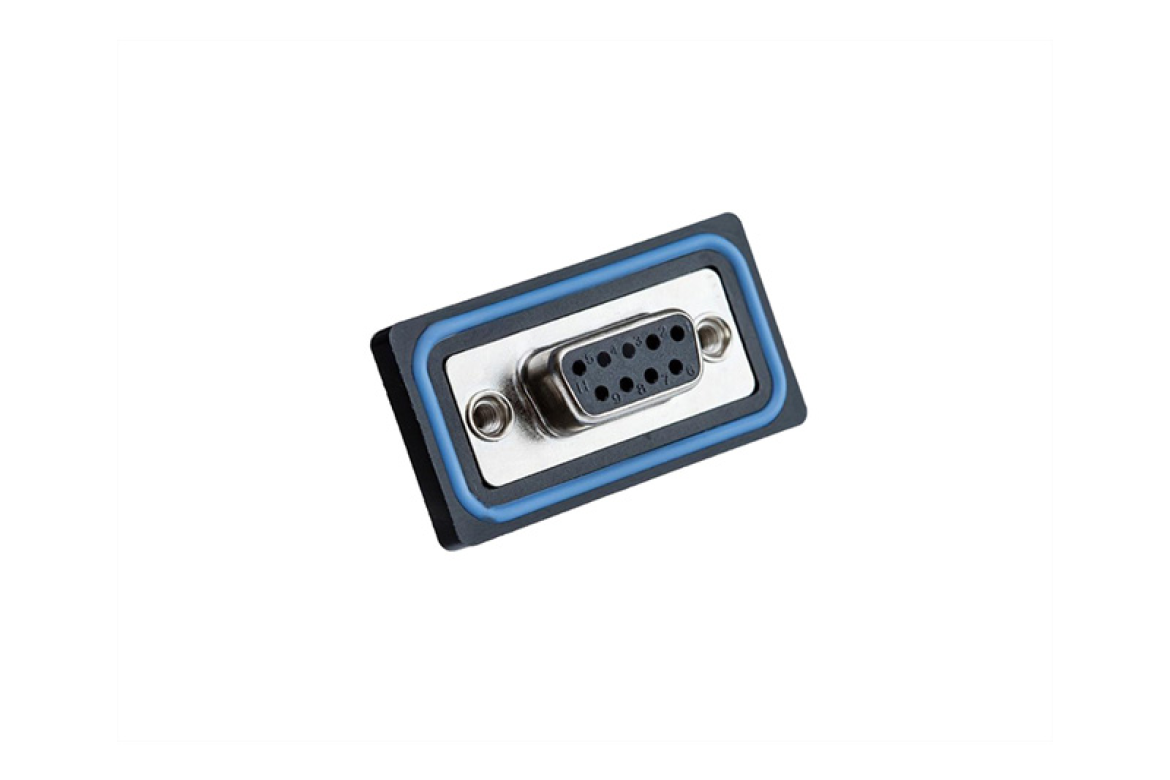

SDB-09PFFP-SB8001 D-Sub
SDB-09PFFP-SB8001 D-Sub
IMAGE MAY DIFFER
SKU:SDB-09PFFP-SB8001
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
Datasheet3D Model
Specifications
No. of Positions: 09Contact Material: Metal, Shielded
AWG: N/A
Amperage: 5A
IP Rating: IP68
Operating Temperature: -40°C ~ +105°C
Mating Cycle Durability: 500
Shape: Right Angle With Board Lock
Cable Diameter: N/A
Connector Gender: Female
Contact Gender: Female
Salt Spray: 8h
Operating Voltage: 125V DC
Receptacle Nut Thread: 4 inch - 40 UNC
Mating Style: Screw Thread
Fasten Style: Front
Assembly Style: PCB 90°
Length (mm): N/A
Panel Thickness: Refer to Drawing
D-Sub, Standard, Metal, 5A, 09 pins, Female Connector, Female Contact, Right Angle With Board Lock, Screw Thread, PCB 90°, Receptacle, IP68 Unmated
