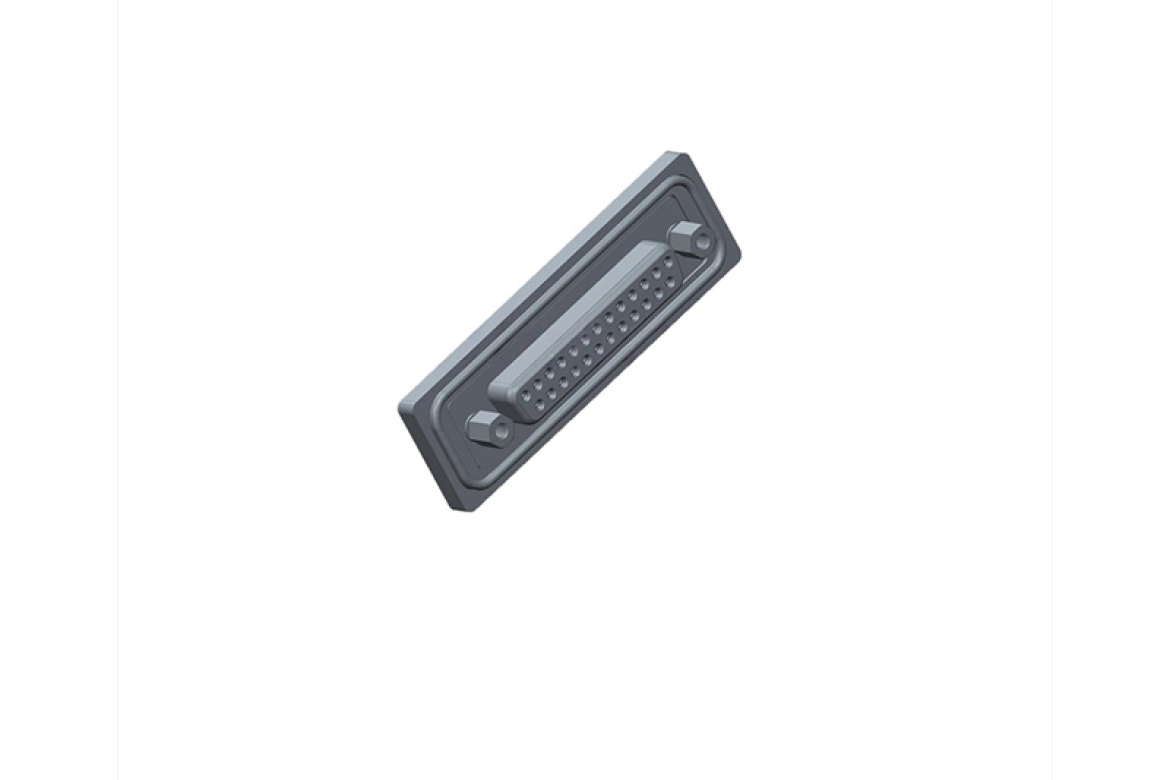

SDB-25PFFS-SL8001 D-Sub
SDB-25PFFS-SL8001 D-Sub
IMAGE MAY DIFFER
SKU:SDB-25PFFS-SL8001
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Specifications
No. of Positions: 25Contact Material: Metal, Shielded
AWG: 22 - 26 AWG
Amperage: 5A
IP Rating: IP68
Operating Temperature: -40°C ~ +105°C
Mating Cycle Durability: 500
Shape: Straight Without Board Lock
Cable Diameter: N/A
Connector Gender: Female
Contact Gender: Female
Salt Spray: 8h hours
Operating Voltage: 125V DC
Receptacle Nut Thread: 4 inch - 40 UNC
Mating Style: Screw Thread
Fasten Style: Front
Assembly Style: Solder
Length (mm): N/A
Panel Thickness: Refer to Drawing
D-Sub, Standard, Metal, 5A, 25 pins, Female Connector, Female Contact, Straight Without Board Lock, Screw Thread, Solder, Receptacle, IP68 Unmated
