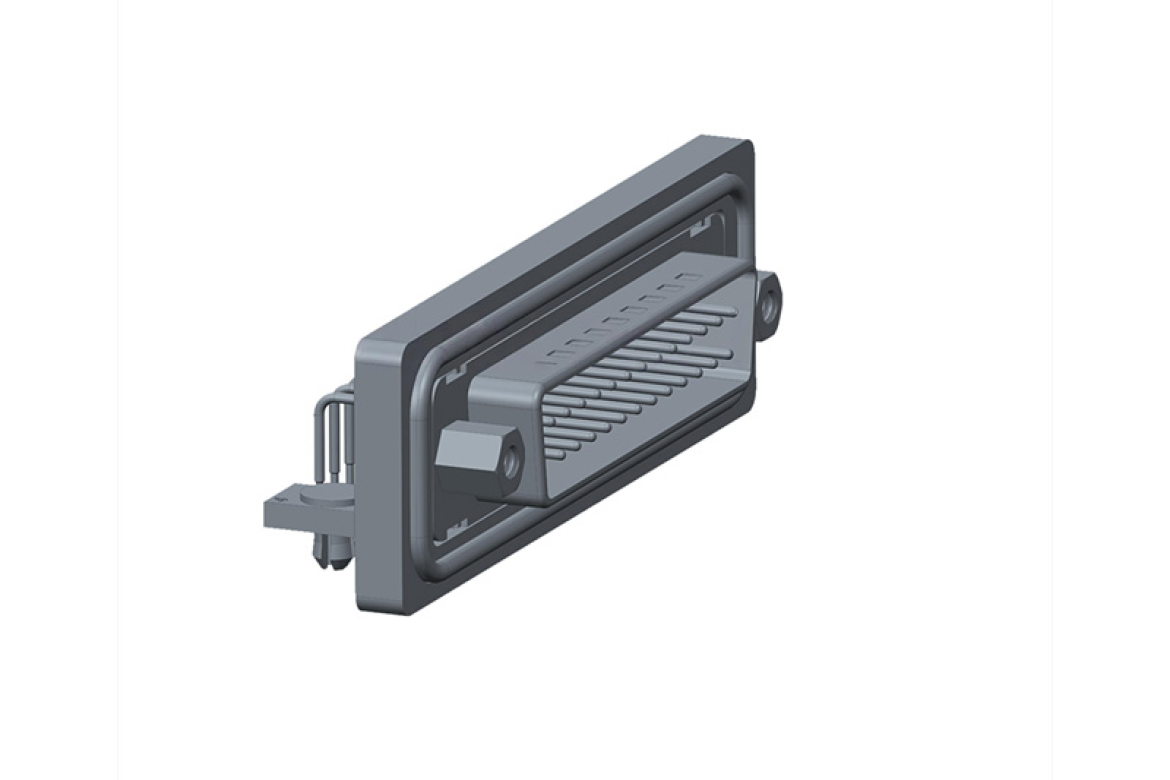

SDB-25PMMP-SB8001 D-Sub

SDB-25PMMP-SB8001 D-Sub

IMAGE MAY DIFFER

SKU:SDB-25PMMP-SB8001

Regular price $0.00 AUD
Regular price Sale price $0.00 AUD
Sale Sold out

Downloads

Datasheet
3D Model

Specifications

No. of Positions: 25
Contact Material: Metal, Shielded
AWG: N/A
Amperage: 5A
IP Rating: IP68
Operating Temperature: -40°C ~ +105°C
Mating Cycle Durability: 500
Shape: Right Angle With Board Lock
Cable Diameter: N/A
Connector Gender: Male
Contact Gender: Male
Salt Spray: 8h
Operating Voltage: 125V DC
Receptacle Nut Thread: 4 inch - 40 UNC
Mating Style: Screw Thread
Fasten Style: Front
Assembly Style: PCB 90°
Length (mm): N/A
Panel Thickness: Refer to Drawing

D-Sub, Standard, Metal, 5A, 25 pins, Male Connector, Male Contact, Right Angle With Board Lock, Screw Thread, PCB 90°, Receptacle, IP68 Unmated
