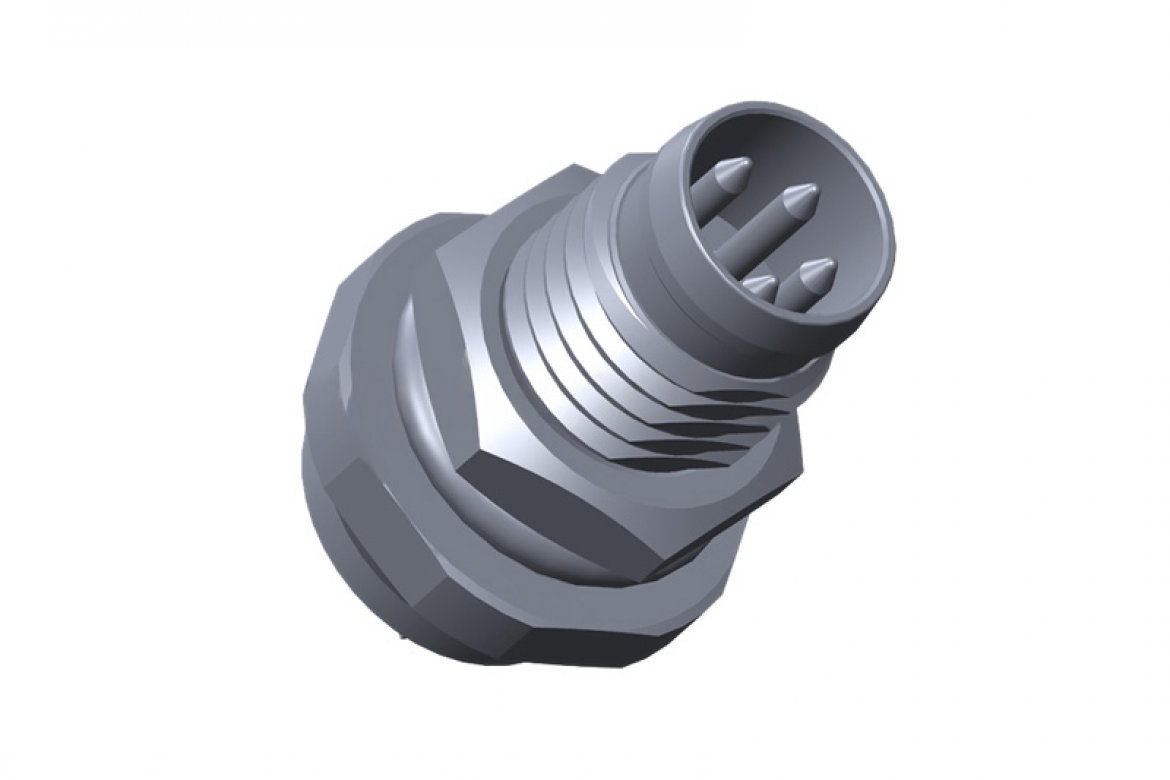

SM8-04PMMS-SF8001 Metric Circular Connector
SM8-04PMMS-SF8001 Metric Circular Connector
IMAGE MAY DIFFER
SKU:SM8-04PMMS-SF8001
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Specifications
No. of Positions: 04Contact Material: Stainless, Non-shielded
AWG: N/A
Amperage: 4A
IP Rating: IP68
Operating Temperature: -40°C ~ +105°C
Mating Cycle Durability: 1000
Shape: Hexagonal
Cable Diameter: N/A
Connector Gender: Male
Contact Gender: Male
Salt Spray: 300h hours
Operating Voltage: 50V AC / 60V DC
Receptacle Nut Thread: M8*1.0
Mating Style: Screw Thread
Fasten Style: Front
Assembly Style: Solder
Length (mm): N/A
Panel Thickness: For Panel: 2.00-4.00
M8 Metric Circular Connector, A Code, Stainless, 4A, 04 pins, Male Connector, Male Contact, Hexagonal, M8*1.0, Screw Thread, Solder, Receptacle, Front Fastened, IP68 Unmated
