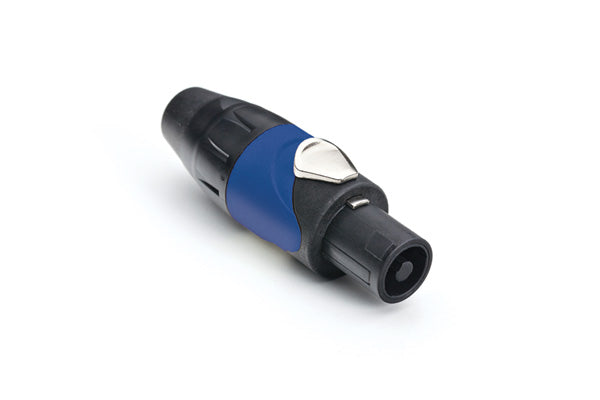

SP-4-F 4 Pole Loudspeaker Cable Connector, High Power Screw Contacts Included,Thermoplastic Shell, Black Finish. Comparable part no: NL4FC, NL4FX

Name: SP-4-F 4 Pole Loudspeaker Cable Connector, High Power Screw Contacts Included,Thermoplastic Shell, Black Finish. Comparable part no: NL4FC, NL4FX
Brand: Amphenol Audio
SKU: SP-4-F
Availability: InStock

IMAGE MAY DIFFER

SKU:SP-4-F

$0.00 AUD

Sale Sold out

Quantity

Downloads

Datasheet

Specifications

No. of Positions: 4
Finish: Black
Current Carrying Capacity: 20A
IP Rating: IP20 (IP40) (Mated Condition)
Contact Plating: Silver
Termination: Screw
Flammability Rating: UL94HB
Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
Service Voltage RMS: 133V (not suitable for domestic applications above 50V)133V (not suitable for domestic applications above 50V)
Test Voltage AC RMS: 1500V
Typical Contact Resistance: < 3mΩ
Insulation Resistance: > 2GΩ/ >1GΩ after Damp Heat Test
Operating Temperature: -25°C to +75°C (-13°F to 167°F)
Mating Cycle Durability: 5000
Housing Material: PA66 GF30 / Black

4 Pole Loudspeaker Cable Connector, High Power Screw Contacts Included, Thermoplastic Shell, Black Finish
