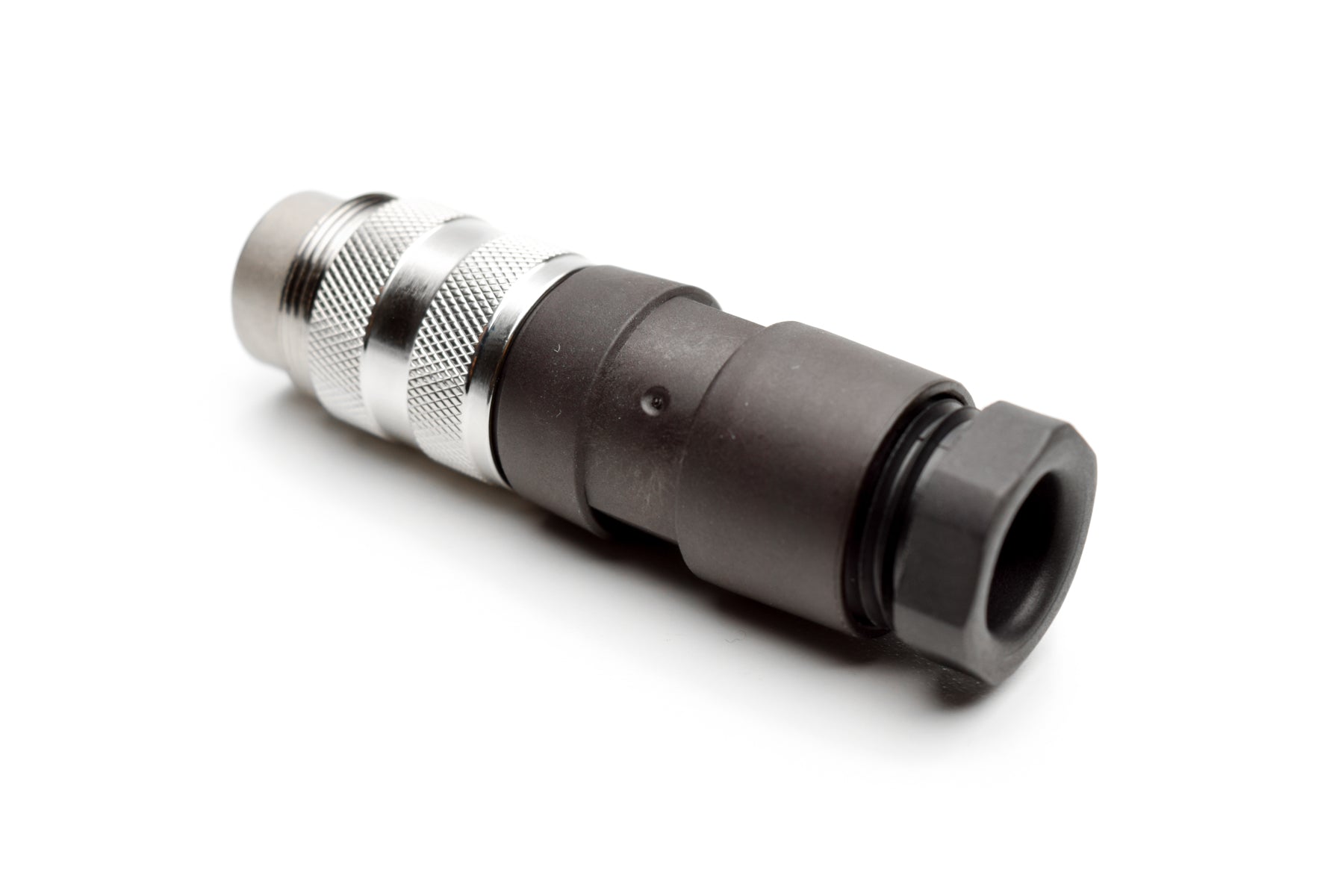

T 3475 002 Male Connectors with internal strain relief and metal locking ring. Screw locking according to IEC 61076-2-106. Contacts included.
T 3475 002 Male Connectors with internal strain relief and metal locking ring. Screw locking according to IEC 61076-2-106. Contacts included.
IMAGE MAY DIFFER
SKU:T3475002
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
DatasheetSpecifications
Contacts: 7
Current Rating: 7A
IP Rating: IP40
Contact Plating: Silver
Termination: Solder
Insulation Resistance: ≥ 10(10) Ω
Operating Temperature: -40°C to +100°C
Housing Material: Die cast, nickel plated
Mating Part: T3476001,T3476002,T3476004,T3476005,T3476013
Shape: circular
Male Connectors with internal strain relief and metal locking ring. Screw locking according to IEC 61076-2-106. Contacts included.
