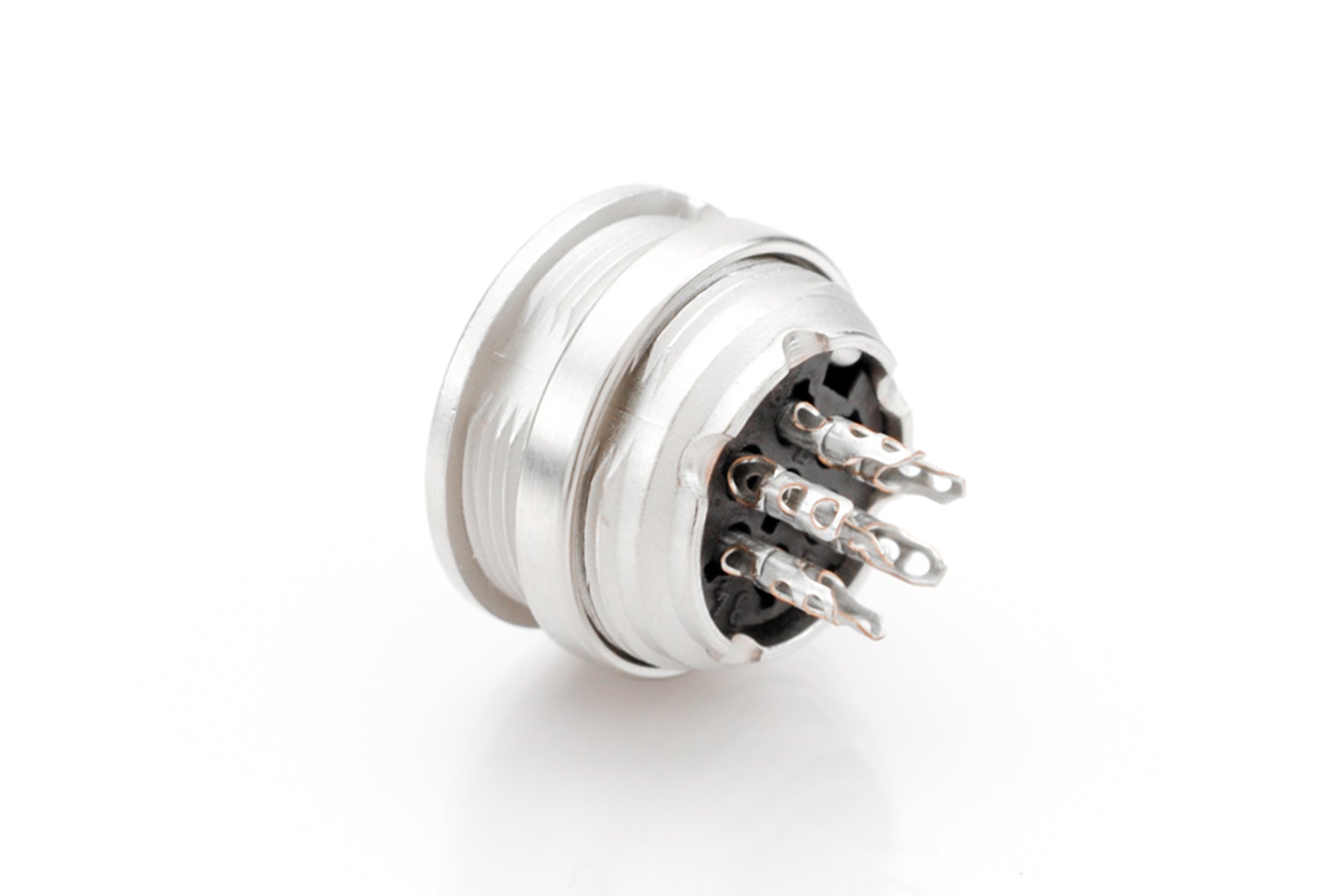

T 3478 000 Front mounting female Connectors with ring nut (hex nut available upon request). Contacts included.
T 3478 000 Front mounting female Connectors with ring nut (hex nut available upon request). Contacts included.
IMAGE MAY DIFFER
SKU:T3478000
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
DatasheetSpecifications
Contacts: 7
Current Rating: 7A
IP Rating: IP40
Contact Plating: Silver
Termination: Solder
Insulation Resistance: ≥ 10(10) Ω
Operating Temperature: -40°C to +100°C
Housing Material: Die cast, nickel plated
Mating Part: T 3477 000, T 3477 100, T 3475 001, T 3475 002
Shape: circular
Front mounting female Connectors with ring nut (hex nut available upon request). Contacts included.
