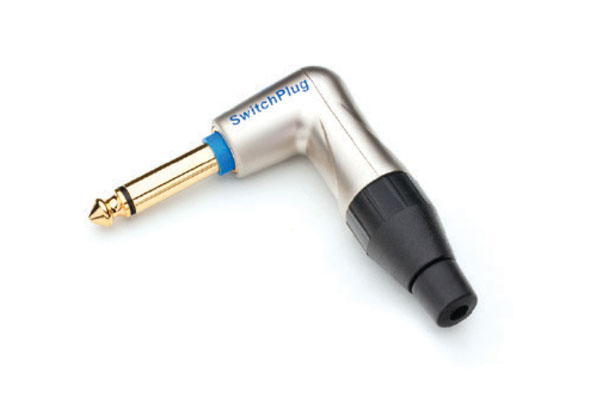

TM1RJ 1/4" Phone Switch Plug,Male, Stereo, 90°, Large Clamp, Nickel Plated, Nickel Shell, Cable OD 3.0MmTo 5.5mm
TM1RJ 1/4" Phone Switch Plug,Male, Stereo, 90°, Large Clamp, Nickel Plated, Nickel Shell, Cable OD 3.0MmTo 5.5mm
IMAGE MAY DIFFER
SKU:TM1RJ
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
DatasheetAssembly Instructions
Specifications
No. of Positions: 1Finish: Nickel
Current Carrying Capacity: 10A (depends on mating connector and cable)
IP Rating: IP40
Contact Plating: Nickel
Termination: Solder
Flammability Rating: UL94V-0 or UL94-HB
Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
Typical Contact Resistance: Depends on mating connector
Insulation Resistance: > 2GΩ/ >1GΩ after Damp Heat Test
Operating Temperature: -25°C to +75°C (-13°F to 167°F)
Mating Cycle Durability: 1000
Housing Material: Diecast Zinc Alloy EZDA No.3
1/4" Phone Switch Plug, Male, Stereo, 90°, Large Clamp, Nickel Plated, Nickel Shell, Cable OD 3.0 mm to 5.5mm
