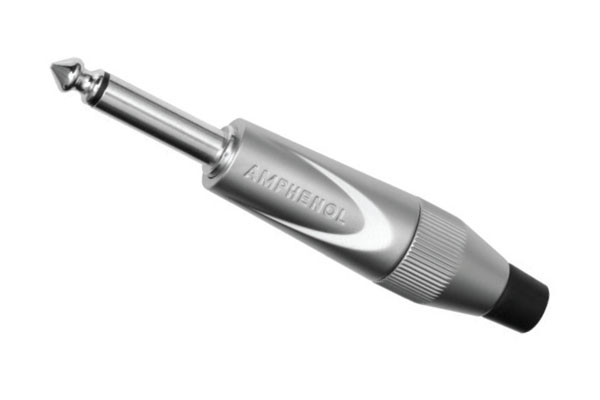

TM2PN-AU 1/4"Mono Straight Phone Plug, PRO Range,Metal Backshell, Gold Plated Contacts, Satin Finish

Name: TM2PN-AU 1/4"Mono Straight Phone Plug, PRO Range,Metal Backshell, Gold Plated Contacts, Satin Finish
Brand: Amphenol Audio
SKU: TM2PN-AU
Availability: InStock

IMAGE MAY DIFFER

SKU:TM2PN-AU

$0.00 AUD

Sale Sold out

Quantity

Downloads

Stock Level

0 Datasheet
Assembly Instructions

Specifications

No. of Positions: 2
Finish: Satin
Current Carrying Capacity: 10A (depending on Mating Connector and Cable)
IP Rating: IP40
Contact Plating: Gold
Termination: Solder
Max Wire Gauge: 16AWG -1.5mm²
Flammability Rating: UL94V-0 or UL94-HB
Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
Operating Temperature: -25°C to +75°C (-13°F to + 167°F)
Mating Cycle Durability: 1000
Housing Material: Diecast Zinc Alloy EZDA No.3

1/4" Mono Straight Phone Plug, PRO Range, Metal Backshell, Gold Plated Contacts, Satin Finish
