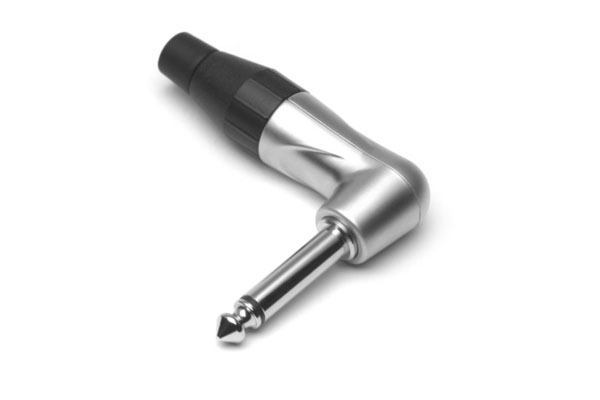

TM2RJ-AU 1/4"Mono Right Angled Phone Plug, PRO Range,Thermoplastic Backshell, Gold Plated Contacts, Satin Finish

Name: TM2RJ-AU 1/4"Mono Right Angled Phone Plug, PRO Range,Thermoplastic Backshell, Gold Plated Contacts, Satin Finish
Brand: Amphenol Audio
SKU: TM2RJ-AU
Availability: InStock

IMAGE MAY DIFFER

SKU:TM2RJ-AU

$0.00 AUD

Sale Sold out

Quantity

Downloads

Datasheet
Assembly Instructions

Specifications

No. of Positions: 2
Finish: Satin
Current Carrying Capacity: 10A (Depends on Mating Connector and Cable
IP Rating: IP40
Termination: Solder
Max Wire Gauge: 16AWG -1.5mm²
Flammability Rating: UL94V-0 or UL94-HB
Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
Operating Temperature: -25°C to +75°C (-13°F to + 167°F)
Mating Cycle Durability: 1000
Housing Material: Diecast Zinc Alloy EZDA No.3

1/4" Mono Right Angled Phone Plug, PRO Range, Thermoplastic Backshell, Gold Plated Contacts, Satin Finish
