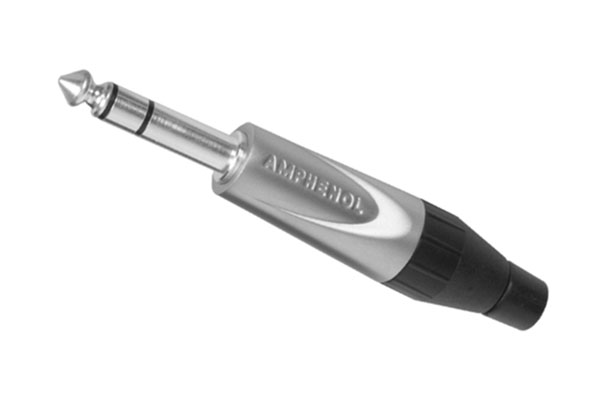

TS3PJ 1/4" 3 Pole Stereo Switch Plug, PRO Range,Thermoplastic Backshell, Large Cable Clamp, Satin Finish
TS3PJ 1/4" 3 Pole Stereo Switch Plug, PRO Range,Thermoplastic Backshell, Large Cable Clamp, Satin Finish
IMAGE MAY DIFFER
SKU:TS3PJ
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
DatasheetAssembly Instructions
Specifications
No. of Positions: 3Finish: Satin
Current Carrying Capacity: 10A (depending on Mating Connector and Cable)
IP Rating: IP40
Termination: Solder
Max Wire Gauge: 18AWG -1mm²
Flammability Rating: UL94V-0 or UL94-HB
Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
Operating Temperature: -25°C to +75°C (-13°F to + 167°F)
Mating Cycle Durability: 1000
Housing Material: Diecast Zinc Alloy EZDA No.3
1/4" 3 Pole Stereo Switch Plug, PRO Range, Thermoplastic Backshell, Large Cable Clamp, Satin Finish
