Duramate Series

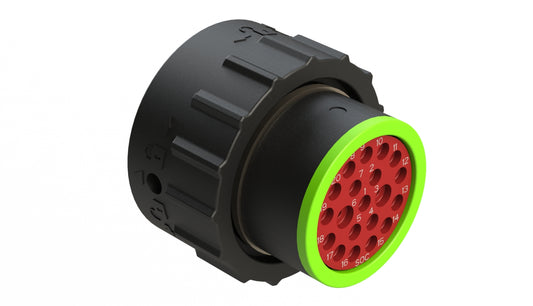

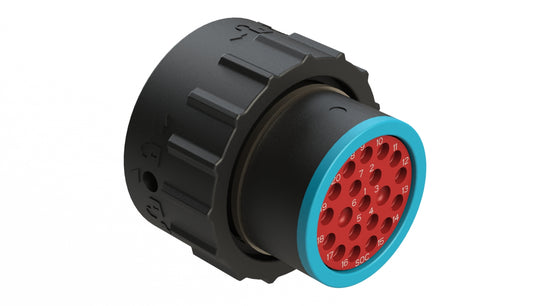

DuraMate™ AHDP

  • Size 18 with 8 insert arrangements 2, 6, 8, 14(x3), 20 and 21
  • Size 24 with 16 insert arrangements 7(x2), 9, 14, 16, 18(x2), 19, 21, 23, 27, 29, 31, 33, 35 and 47

DuraMate™ AHDM

  • Size 18 with 6 insert arrangements 2, 6, 8, 14, 20 and 21
  • Size 24 with 15 insert arrangements 7(x2), 9, 14, 16, 18, 19, 21, 23, 27, 29, 31, 33, 35 and 47

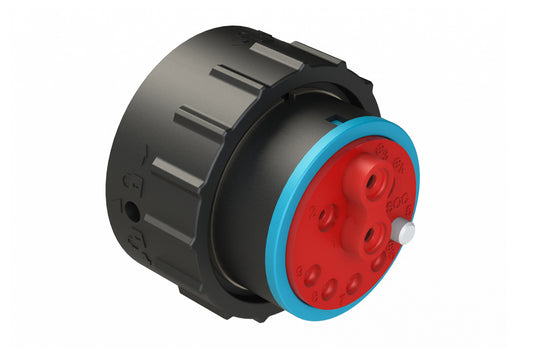

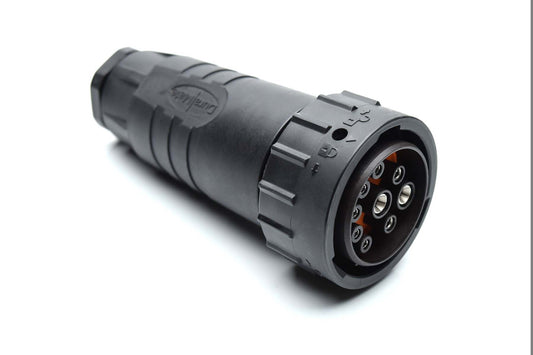

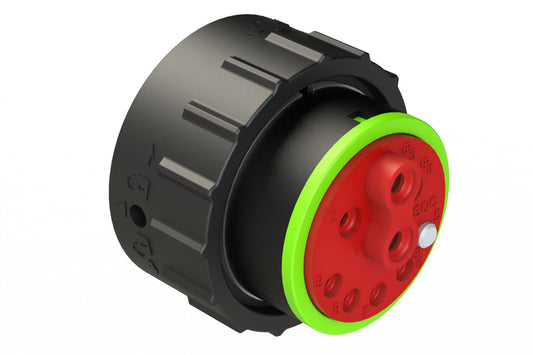

DuraMate™ AHDP ISOBUS 91 Series

  • Size 24, 9 Position

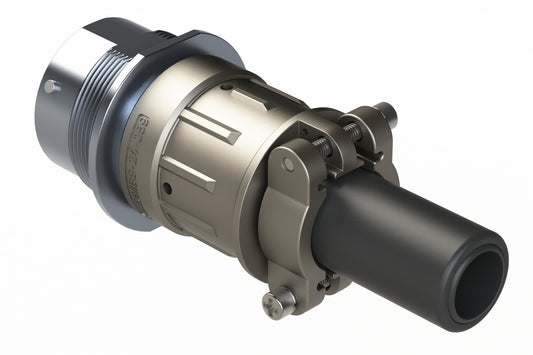

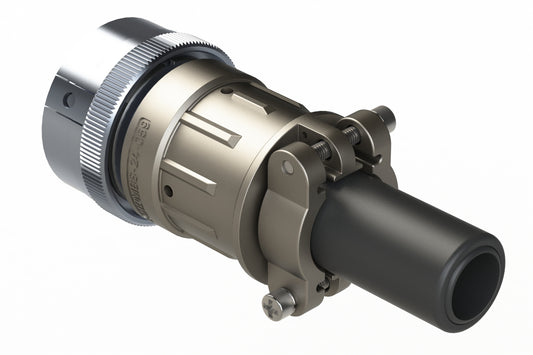

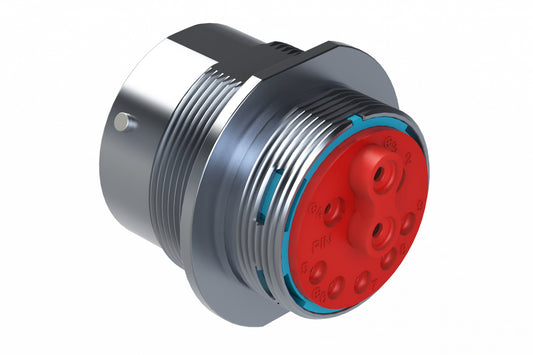

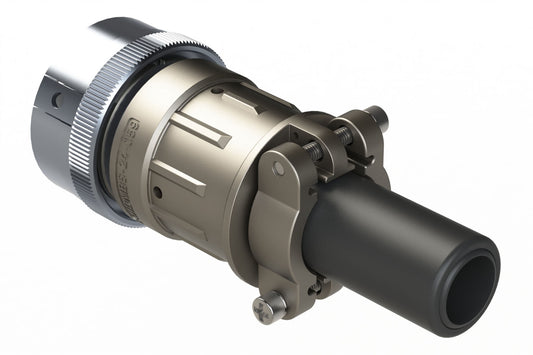

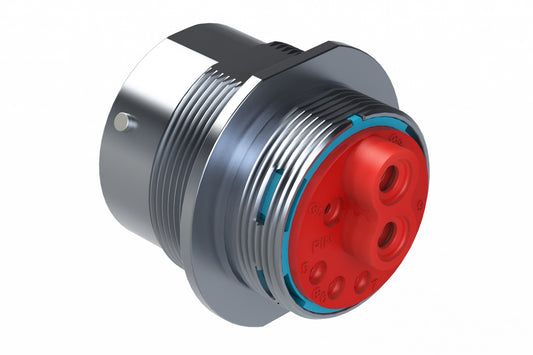

DuraMate™ AHDM/AHDBM ISOBUS 91 Series

  • Size 24, 9 Position

Amphenol Sine Systems’ DuraMate™ Family of environmentally-sealed, multi-pin, heavy duty, plastic (AHDP) or metal (AHDM/AHDBM) circular connectors provide an economical, quick-connect, bayonet-locking system manufactured to withstand the challenges and complexities of harsh-environment, off-road applications. Our ISOBUS products specifically meet ISO 11783 standards (for control and communications between tractors, implements and software) for agricultural applications.

Features

  • 3 key-way bayonet design ensures proper mating of connectors
  • High density signal and mixed power insert configurations
  • Operating temperature range: -55°C to +125°C
  • High current configurations incorporating revolutionary RADSOK® contacts
  • High strength impact resistant & lightweight thermoplastic or zinc-alloy metal housings
  • Low insertion force stamped terminals offer improved manufacturing efficiencies
  • Environmentally-sealed and engineered rapid and secure mating system achieves IP68/IP69K protection (in mated condition) from ingress of dust, water, mud and other contaminants and is vibration resistant
  • Sealing features consisting of durable high temperature silicone provide barrier from lubricating oils, hydraulic fluids and fossil fuels
  • Backshells maintain a compression-fit design to resist maximum pull-out forces and facilitate strain-relief for jacketed cable ranges
  • Utilizes A Series™ standard contact system (Stamped & Formed or Machined)
  • Wire entry sealing available in three separate ranges for discrete wire applications
  • Smooth Ring Adapters (SRA) are designed for use without backshells for a smaller footprint
  • Small Thread Adapters (STA) provide an enhanced “step down” threading for use with screw-on or clamshell backshells
  • Wide Thread Adapters (WTA) provide an enhanced threading for use with our wide variety of screw-on or clamshell backshells
  • Backshell Ring Adapters (BRA) allow for use with other compatible industry-standard snap-on backshells

Applications: Harsh Environment, Off-Road and Agricultural applications
