ecomate Plastic

Available in 1 Shell Size and 4 Insert Arrangements

Amphenol Tuchel Industrial’s ecomate® Plastic Series of connectors provide an IP65/67 rating (in mated condition) for industrial applications, and incorporates the latest technology in a sealed, high-impact, lightweight, thermoplastic design. ecomate® Plastic connectors feature a rapid threading coupling system for easy, reliable mating/unmating. Also available as ecomate® Overmolded Cable Assemblies with integrated uni-directional strain reliefs, highly-flexible cables resistant to a wide range of chemical fluids, all while being UV and corrosion resistant.

Potential Applications: Factory Automation, Industrial, Heavy Equipment, Heavy Duty, Transportation, Entertainment/Lighting, Welding, Special Machinery, Surveillance, Traffic Systems, HVAC, I/O Module

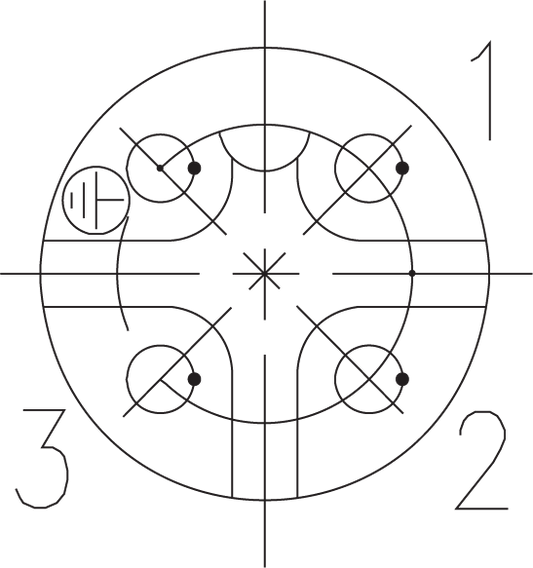

C016 20K003 100 10 3+PE Male, right angled cable connector with strain relief and clamping ring. Field installable screw termination.. Comparable part no: 99-4221-70-04, CA3WLS

C016 20K003 100 10 3+PE Male, right angled cable connector with strain relief and clamping ring. Field installable screw termination.. Comparable part no: 99-4221-70-04, CA3WLS

Regular price $0.00 AUD

Regular price Sale price $0.00 AUD
Unit price per

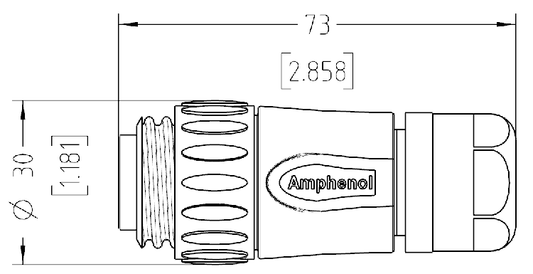

C016 20D003 806 12 3+PE Female straight female cable connector with turned contacts, black. Field installable screw termination, 4 pressure plates.

C016 20D003 806 12 3+PE Female straight female cable connector with turned contacts, black. Field installable screw termination, 4 pressure plates.

Regular price $0.00 AUD

Regular price Sale price $0.00 AUD
Unit price per

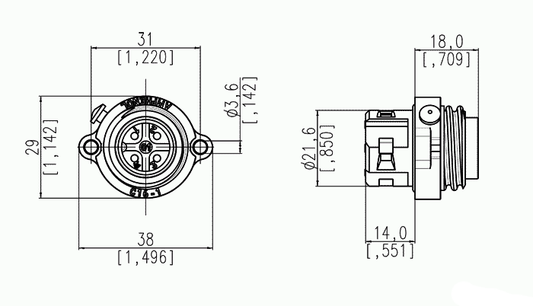

C016 20C003 200 12 3+PE Male receptacle with field installable screw termination. Mounting hole Ø22 without chamfer; suitable sealing for screws is necessary. Crimp contacts sold separately. Available in gold or silver plating.

C016 20C003 200 12 3+PE Male receptacle with field installable screw termination. Mounting hole Ø22 without chamfer; suitable sealing for screws is necessary. Crimp contacts sold separately. Available in gold or silver plating.

Regular price $0.00 AUD

Regular price Sale price $0.00 AUD
Unit price per
C016 10P006 806 12 6+PE Male receptacle, crimp version.

C016 10P006 806 12 6+PE Male receptacle, crimp version.

Regular price $0.00 AUD

Regular price Sale price $0.00 AUD
Unit price per

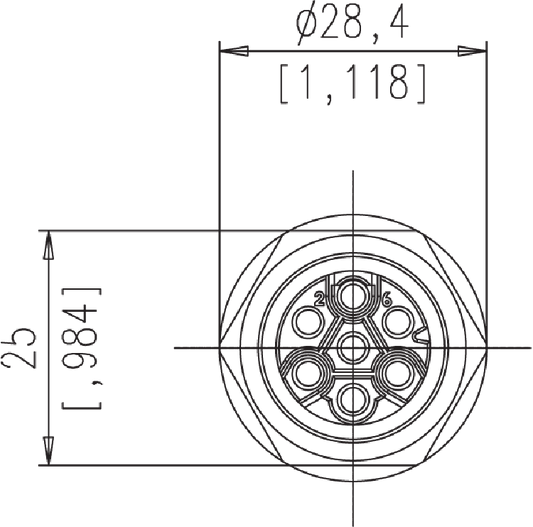

C016 10P003 806 12 3+PE Male receptacle, crimp version. Screw locking, , black back shell

C016 10P003 806 12 3+PE Male receptacle, crimp version. Screw locking, , black back shell

Regular price $0.00 AUD

Regular price Sale price $0.00 AUD
Unit price per
C016 10H006 010 10 6+PE Male, straight cable connector with strain relief, internal cable clamping and clamping ring. Crimp contacts sold separately. Available in gold or silver plating.. Comparable part no: 99-4201-00-07

C016 10H006 010 10 6+PE Male, straight cable connector with strain relief, internal cable clamping and clamping ring. Crimp contacts sold separately. Available in gold or silver plating.. Comparable part no: 99-4201-00-07

Regular price $0.00 AUD

Regular price Sale price $0.00 AUD
Unit price per
C016 10H006 000 10 6+PE Male, straight cable connector with strain relief and clamping ring. Crimp contacts sold separately. Available in gold or silver plating.

C016 10H006 000 10 6+PE Male, straight cable connector with strain relief and clamping ring. Crimp contacts sold separately. Available in gold or silver plating.

Regular price $0.00 AUD

Regular price Sale price $0.00 AUD
Unit price per

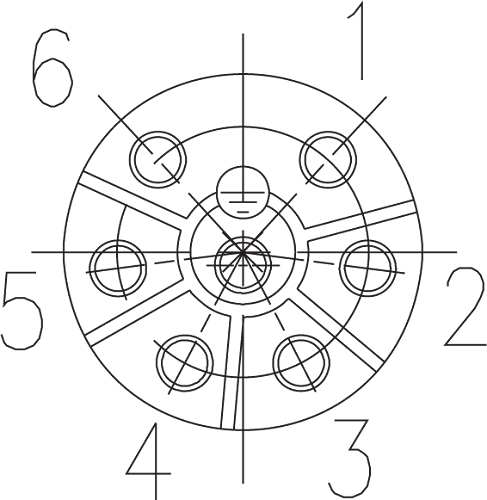

C016 10D006 010 12 6+PE Female straight cable connector with internal cable clamping and clamping ring. Crimp contacts sold separately. Available in gold or silver plating.. Comparable part no: 99-4202-14-07

C016 10D006 010 12 6+PE Female straight cable connector with internal cable clamping and clamping ring. Crimp contacts sold separately. Available in gold or silver plating.. Comparable part no: 99-4202-14-07

Regular price $0.00 AUD

Regular price Sale price $0.00 AUD
Unit price per

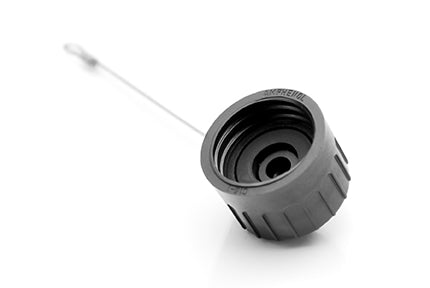

T 6482 008 Protective cover for male receptacle, with stainless steel cord

T 6482 008 Protective cover for male receptacle, with stainless steel cord

Regular price $0.00 AUD

Regular price Sale price $0.00 AUD
Unit price per

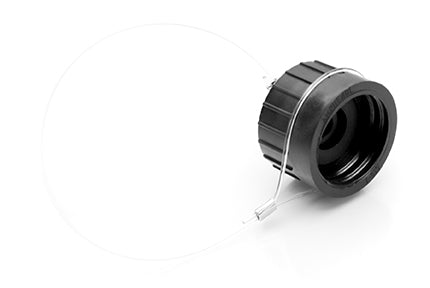

T 6482 001 Protective cover for male receptacle, with nylon cord

T 6482 001 Protective cover for male receptacle, with nylon cord

Regular price $0.00 AUD

Regular price Sale price $0.00 AUD
Unit price per

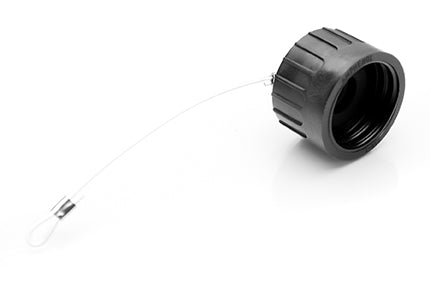

T 6482 000 Protective cover for male connector

T 6482 000 Protective cover for male connector

Regular price $0.00 AUD

Regular price Sale price $0.00 AUD
Unit price per
T 3110 100 3+ PE male receptacle, sold with turned contacts

T 3110 100 3+ PE male receptacle, sold with turned contacts

Regular price $0.00 AUD

Regular price Sale price $0.00 AUD
Unit price per
